1. What Is an Electric Chain Hoist?
Electric chain hoists use a motor to lift heavy loads in workshops and factories, improving efficiency and reducing fatigue compared to manual chain hoists.

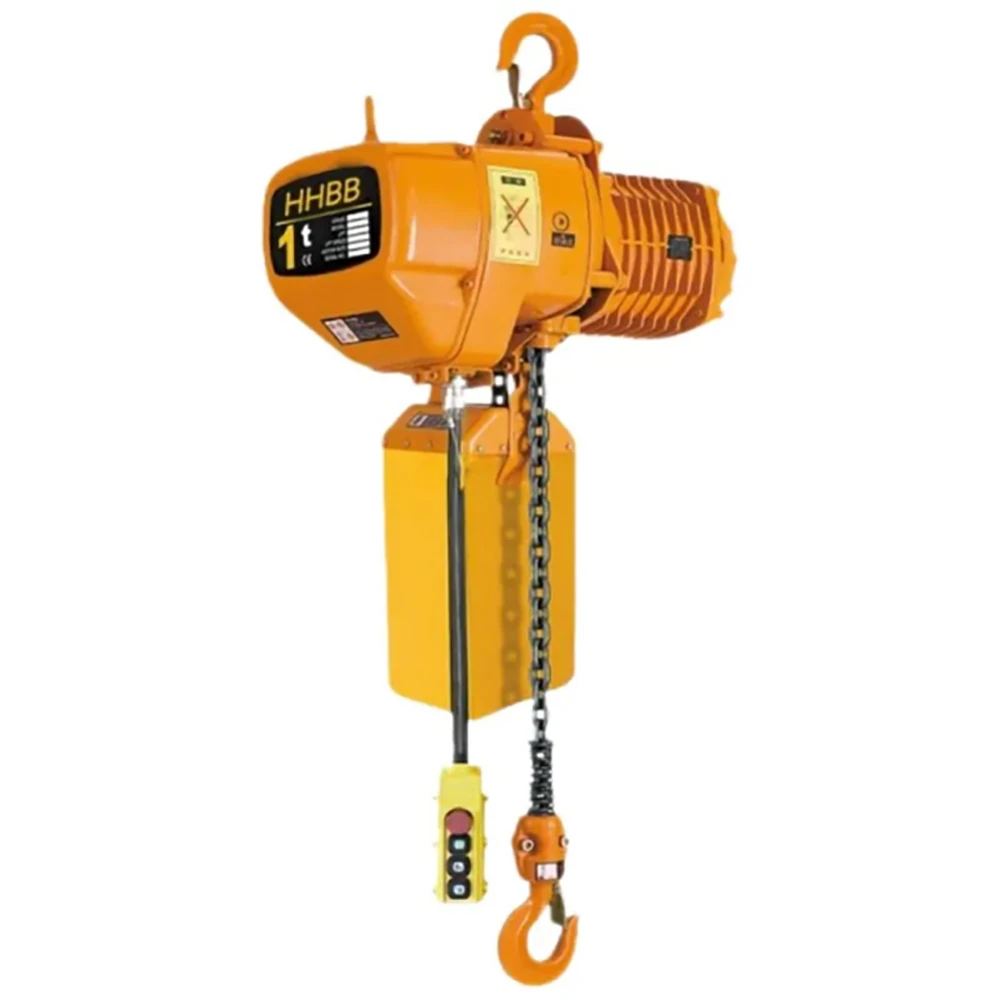

The HHBB electric chain hoist is a typical example of modern industrial lifting equipment. It supports three voltages (220V, 380V, and 440V) and is compatible with 50/60Hz power systems, making it suitable for use around the world. The hoist features a simple, efficient, and economical design. With its compact structure, low headroom, and lightweight steel design, it is not only easy to install and operate but also capable of performing effectively even in confined spaces.
1.1 Basic Working Principle of Electric Chain Hoist
Electric chain hoists convert electrical energy into mechanical motion. The motor drives the gear set and sprocket, which in turn drives the chain to raise and lower the hook. Limit switches stop the motor when the hook reaches the highest or lowest safe position to prevent accidents. High-quality alloy steel components ensure the accuracy and safety of equipment operation.
1.2 Compact & Low Headroom Design for Confined Spaces
One of the notable features of the HHBB electric chain hoist is its compact, low-headroom design. The lightweight steel and aluminum construction allows the hoist to be installed and operated even in confined spaces such as small workshops, shipping containers, or low-ceiling factories. This design does not sacrifice lifting capacity or safety. The lightweight design is more beautiful, with less weight and a smaller work area.
2. Why Choose Multi-Voltage Electric Chain Hoist (220V / 380V / 440V)?
2.1 Voltage Flexibility for Global Industrial Applications
The HHBB electric chain hoist can support 220V, 380V and 440V voltages on a standalone unit, eliminating the need for a voltage converter or purchasing different models. This feature brings great convenience to multinational factories, equipment exporters, and construction sites using temporary power. All models are powered by three-phase power and are compatible with various industrial power systems worldwide.
2.2 50/60Hz Frequency Compatibility
In addition to offering a variety of voltage options, this crane is also suitable for 50Hz and 60Hz power systems. This ensures that the crane maintains stable performance whether used in Europe, Asia, Africa, or the Americas. Frequency compatibility also protects the motor from overheating or speed variations.
3. Main Features of Industrial Electric Chain Hoist
3.1 High Strength G80 Load Chain
The HHBB electric chain hoist uses a G80 grade high-strength load chain, manufactured with high-precision welding technology. The chain undergoes medium-frequency quenching heat treatment, which provides low wear, corrosion resistance, and suitability for gusty overload working conditions. The chain also offers a smooth and comfortable hand feel during manual positioning and supports multi-angle operation including a 45° working angle.
3.2 Alloy Steel Forged Hook with Safety Latch
The hook is made of high-class alloy steel using a die-forging process. This enhances both strength and toughness. The new hook design ensures the weight will never escape, protecting personal safety. Each hook is precision-machined to maintain dimensional accuracy and reliability. The forming process at the hot spot increases strength and toughness.
3.3 Limit Switch for Over-Travel Protection
Both the lifting and lowering directions are equipped with limit switch devices using limit switch components in designation. Once the chain reaches the preset upper or lower limit, the hoist automatically stops. This prevents the chain from over-running, protects the internal components, and ensures operational security.
3.4 Lightweight Aluminum Alloy Housing with Heat Sinks
Unlike traditional steel-bodied hoists, the HHBB electric chain hoist features an aluminum alloy housing with special heat sink fins. This design provides a sturdy yet lightweight construction, fast heat dissipation, and up to 40% efficiency for continuous operation. It is suitable for chemical plants, electroplating facilities, and other demanding environments.
3.5 Multi-Angle Operation (45°)
The hoist supports multi-angle operation, including a 45° working angle. This flexibility allows the operator to position loads from different directions without moving the entire hoist, which is particularly useful in tight or cluttered workspaces.
3.6 100% Copper Winding Motor for Continuous Operation
The motor uses 100% pure copper windings, which provide high power output, fast heat dissipation, and sustainable operation for long periods. It delivers reliable performance in the chemical industry, electroplating plants, and similar locations. The high-efficiency electromagnetic contactor allows frequent use.
3.7 Advanced Plastic Plating Anti-Corrosion
The hoist adopts advanced plastic plating technology on both internal and external surfaces. Even after years of operation in harsh environments such as chemical plants or outdoor use, the hoist remains corrosion-resistant and retains a like-new appearance.
3.8 High-Class Steel Enclosure
The enclosure is made of high-class steel, making the hoist more firmly built and dexterous. This robust construction ensures long-term mechanical strength and impact resistance.
4. Technical Specifications & Models
4.1 Lifting Capacity from 0.5 Ton to 5 Ton
The HHBB series includes models with lifting capacities of 0.5T, 1T, 2T, 3T, and a 5 ton electric chain hoist. Each model is identified by a specific model number such as HHBB0.5-01, HHBB01-02, HHBB02-01, etc. The factory accepts different customization options including color, chain length, loading capacity, and brand.
4.2 Lifting Height & Speed Parameter Table
| Model | Capacity (Ton) | Lifting Height (m) | Lifting speed (m/min) | Power (kw) | Rotation speed (r/min) | Phases | Voltage (V) | Frequency (Hz) |
| HHBB0.5-01 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-02 | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-01 | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-03 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-02 | 3 | 3/9 | 3.3 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-01 | 3 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
| HHBB05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 |
5. How to Choose the Right Electric Chain Hoist?
5.1 Load Capacity
Choose a model with at least 20% higher rated capacity than your maximum load. Available: 0.5T, 1T, 2T, 3T, and 5T.
5.2 Lifting Height (3m / 5m / 6m / 7m / 9m)
Standard lifting height starts at 3 meters; custom lengths are also available.
5.3 Voltage (220V/380V/440V) & Phase 3
All HHBB models, from the electric hoist 220V to the 440V version, support three-phase power for worldwide industrial compatibility.
5.4 Duty Cycle & Heat Dissipation Needs
For continuous operation, please select the aluminum housing model with heat sink fins, which can maintain up to 40% efficiency during long-term operation. This is especially important for applications in the chemical industry and electroplating plants.
5.5 Working Environment Considerations
Factors such as temperature, humidity, dust, and corrosive substances need to be considered. Advanced plastic plating technology provides excellent corrosion protection for harsh environments.
6. Safety & Durability Features
6.1 High-Class Alloy Steel Hook & Enclosure
The hoist body and hooks are made from high-grade alloy steel, providing long-term mechanical strength and impact resistance. The enclosure is made of high-class steel, making it more firmly built and dexterous.
6.2 Limit Switch Protection
The limit switch devices in both lifting and lowering directions prevent over-travel, protecting the chain, motor, and operator. Once the limit is reached, the hoist automatically stops.
6.3 Advanced Plastic Plating Anti-Corrosion
By adopting advanced plastic plating technology inside and outside, the hoist looks like a new one even after years of operation. This provides excellent protection against rust and chemical damage.
6.4 High-Strength Chain and Welding Technology
The chain adopts high strength chain and high precision welding technology. It fits for gusty overload work conditions, takes your hands a better feeling, and supports multi-angle operation with 45° flexibility.
7. OEM and Customization Options
7.1 Custom Color and Branding
Your logo or brand name can be applied to the hoist housing. Any RAL color is available for factory orders. Our factory accepts different customization including color and brand.
7.2 Different Chain Length and Capacity Options
Chain length can be customized to 3m, 5m, 6m, 7m, or longer. Load capacities are available from 0.5T to 5T. Custom chain lengths are readily available.
7.3 OEM / ODM Manufacturing Support
As an electric hoist factory, we accept OEM/ODM orders with custom packaging, manuals, labels, and designs — for both standard and custom specs.
8. Conclusion: Efficient Lifting Solution for Industrial Use
The HHBB series electric chain hoist combines multi-voltage compatibility (220V, 380V, 440V), G80 high-strength chain, limit switch safety, aluminum alloy housing with heat dissipation, and 100% copper winding motor into a single reliable lifting solution.
Whether you operate a small workshop or a large factory, need standard or custom specifications, the HHBB electric chain hoist delivers consistent performance, operational safety, and long service life. With support for 220V, 380V, and 440V power systems, 50/60Hz frequency compatibility, and a wide range of lifting capacities from 0.5 ton to 5 ton, it is one of the most flexible electric chain hoists available for global industrial use. The compact design, low headroom, and lightweight construction make it easy to install and operate even in confined spaces. The factory accepts various customizations including color, chain length, loading capacity, and brand, making it a truly versatile solution for any lifting application.
