Key Takeaways
For buyers sourcing a 12000lbs electric winch, the most important factors include:
- Pulling capacity matters: The 12,000-pound capacity is measured when the cable is positioned on the first layer of the drum. Actual pulling force decreases as more rope layers are added to the drum.
- Choose the right power system: Buyers should first check the vehicle’s power requirements before selecting a 12V or 24V electric winch.
- Check complete specifications: Reviewing the full specification list helps identify the right winch, including motor power, gear system, brake design, waterproof rating, size, and weight.
What Is an Electric Winch and How Does It Work?
An electric winch is a power-driven rescue tool that can assist in towing vehicles or heavy objects when additional pulling force is needed. It is commonly used in vehicle rescue, towing, and off-road scenarios.
The basic working process of an electric winch includes several key components:
Motor → Gearbox → Drum → Rope
An electric winch works through the combined action of the motor, gearbox, drum, and rope. An electric winch uses a motor and gear system to pull the rope around the drum. The rope then transfers the pulling force to the vehicle or load being recovered.
In real applications, the winch performance can vary depending on the motor output, gear ratio, rope layer on the drum, and working conditions.
How to Choose the Right Electric Winch for Heavy-Duty Applications?
Understand Rated Line Pull Capacity
One of the most important specifications when choosing an electric winch is rated line pull capacity.
For example, a 12000lbs electric winch indicates that the winch can provide a maximum single-line pulling force of 12,000 lbs under specific conditions.
However, the rated capacity may change depending on the actual working conditions and rope position on the drum.
The rated pulling capacity is usually measured when the rope is positioned on the first layer of the drum. When the rope builds up on the drum, the winch produces less pulling force because the effective drum size becomes larger.
For professional buyers, this means selecting a winch only by the maximum capacity number may not provide an accurate evaluation of real working performance.
When comparing an electric winch for sale, buyers should review:
- Rated line pull
- Rope layer performance
- Required pulling distance
- Actual working conditions
For buyers, the key is to select a winch that fits the job requirements instead of simply choosing the model with the largest capacity number.
Choose Between 12V and 24V Electric Winch Systems
The electrical system is another important consideration when selecting an electric winch.
12V electric winches are widely used on vehicles with standard 12V electrical systems, including trucks and SUVs.
24V electric winches are mainly used where the vehicle requires a higher-voltage power supply.
Before purchasing, the buyer should confirm:
- Vehicle voltage system
- Battery capacity
- Electrical installation requirements
- Expected operating conditions
Matching the winch voltage with the vehicle system is important for safe and reliable operation.
Synthetic Rope vs Steel Cable: Which Is Better for Heavy-Duty Applications?
The rope material is an important factor when selecting an electric winch because it directly affects operation convenience, maintenance requirements, and long-term usability.
When choosing between steel cable and synthetic rope, buyers should consider factors such as equipment weight, operating environment, and maintenance requirements. Synthetic rope can be a better fit for users who need frequent outdoor recovery operations.
The following comparison shows the general differences between synthetic rope and steel cable:
| Criteria | Synthetic Rope | Steel Cable |
| Weight | Lightweight and easier to handle | Heavier |
| Corrosion Resistance | Resistant to rust and moisture exposure | May require more maintenance in wet environments |
| Handling | Flexible and easier to operate | Requires more careful handling |
| Maintenance | No lubrication required | May require additional maintenance |
Why Gear System and Brake Design Matter
Planetary Gear System
The gearbox is a key part of the winch system. The planetary gear design helps to provide higher torque for heavy-duty rescue operations.
Some notable features are:
- Stable torque output
- Efficient power transfer
- Suitable performance for heavy-load pulling applications
In real recovery applications, the gear system needs to withstand frequent heavy-duty operation and maintain reliable performance.
Brake System
An excellent braking system provides operators with better control when towing vehicles or heavy equipment.
When comparing different winches, buyers usually look at:
- Brake reliability
- Load control capability
- Ease of operation
Key Features to Look for in a Heavy-Duty Electric Winch
When selecting an electric winch for heavy-duty applications, buyers should evaluate the complete design rather than focusing on a single specification.
Important factors include:
Motor Power
The motor determines the power available for pulling operations.
A suitable motor should provide stable performance under different load conditions.
Buyers should review:
- Motor power rating
- Current requirements
- Expected working load
Gear System
The gear structure affects how efficiently motor power is converted into pulling force.
Important specifications include:
- Gear type
- Gear reduction ratio
- Torque transmission capability
Brake Function
A reliable brake system helps maintain control during recovery operations.
Buyers should consider:
- Automatic braking function
- Load holding capability
- Operational convenience
Waterproof Protection
Electric winches are often used in outdoor environments where exposure to water, dust, and mud is common.
Environmental protection features such as sealed motor housing and waterproof design can help improve equipment reliability.

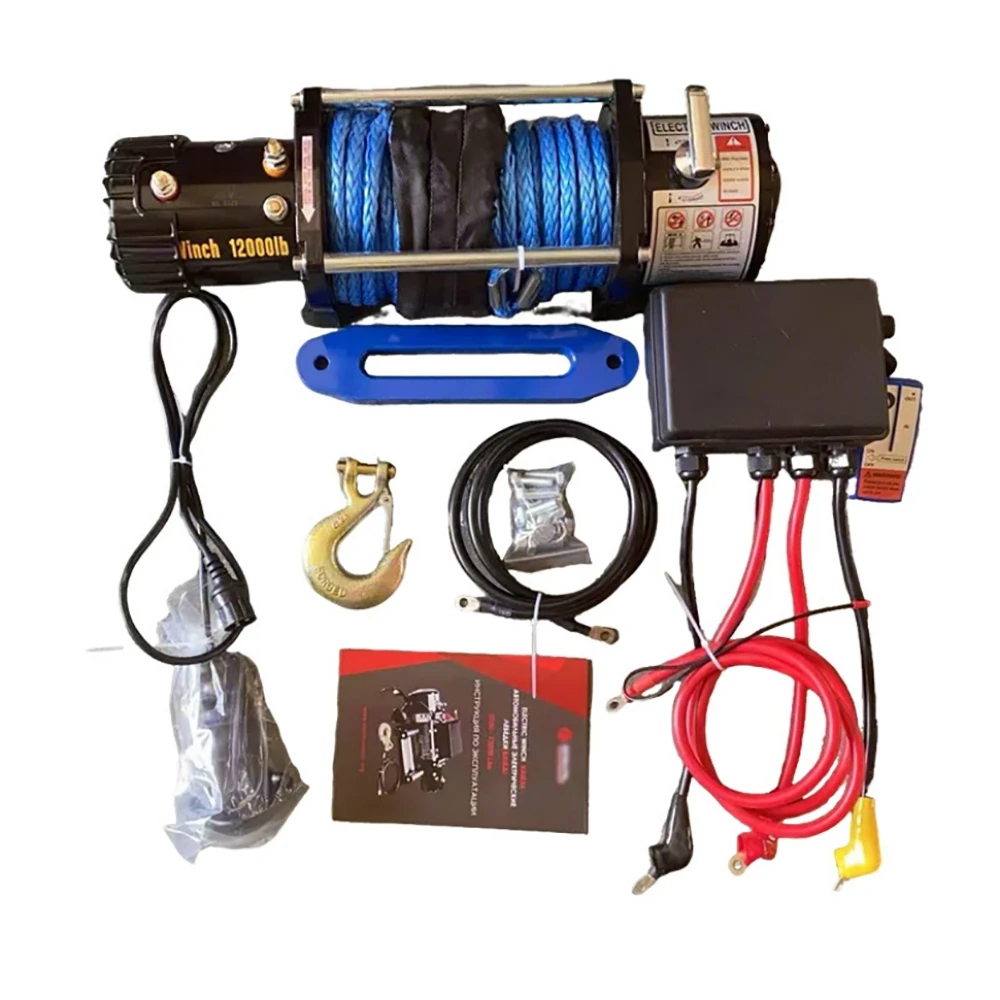

Featured Product: Heavy Duty 12000LBS 12V/24V Synthetic Rope Electric Winch
The featured heavy-duty electric winch is designed for professional recovery and towing applications where strong pulling capability, durability, and operational flexibility are required.
Developed by Baoding OTOY Trading Co., Ltd, this 12000LBS electric winch is designed for trucks, SUVs, trailers, and heavy off-road recovery applications.
We have served customers in more than 80 countries, with products including pallet trucks, electric chain hoists, electric winches, magnetic lifters, chain blocks, lever blocks, shop cranes, floor jacks, hydraulic jacks, pneumatic air jacks, and stackers.
The heavy-duty electric winch combines high-power output, reinforced construction, and practical recovery functions to support demanding working environments.
Designed for Truck, SUV and Off-Road Recovery Applications
The 12000LBS electric winch is specially designed for:
- Truck recovery
- SUV recovery
- Off-road rescue
- Towing operations
- Heavy vehicle recovery
Its combination of:
- 12,000 lbs single-line pulling capacity
- High-power motor
- Synthetic rope
- Automatic load brake
provides a practical solution for users who require reliable recovery performance.
High-Power Motor and Planetary Gear System
The product is equipped with:
- 3.9 kW / 5.35 HP motor
- Three-stage planetary gear drive
- 203:1 gear reduction ratio
The high-power motor provides the pulling force required for heavy-duty recovery tasks, while the planetary gear system helps transfer motor output into stable torque.
This combination supports applications where consistent pulling performance is important, including truck recovery and off-road operations.
Premium Synthetic Rope for Easier Operation
One of the key advantages of this heavy-duty electric winch is the use of premium synthetic rope instead of traditional steel wire rope.
The product is equipped with:
- 9 mm × 12 m synthetic rope
For truck recovery, SUV rescue, and off-road applications, rope selection directly affects operation efficiency and maintenance requirements.
Compared with traditional steel cable, synthetic rope provides several practical advantages:
Lightweight Design
Synthetic rope is easier to handle during recovery preparation and daily operation.
Its lightweight characteristics help operators:
- Pull out and position the rope more easily
- Reduce handling effort
- Improve installation and transportation convenience
For recovery vehicles that frequently operate in different locations, easier rope handling can improve overall work efficiency.
Corrosion Resistance
Outdoor recovery equipment may be exposed to:
- Rain
- Mud
- Dust
- Humidity
- Changing weather conditions
Synthetic rope provides better resistance to corrosion compared with traditional steel wire rope.
Additional advantages include:
- No rust formation
- No lubrication requirement
- Resistance to daily abrasion
This makes it suitable for vehicles operating in outdoor and off-road environments.
Smooth Operation and Surface Protection
During recovery operations, the rope may contact vehicle surfaces, trailer structures, or recovery points.
The soft surface of synthetic rope helps reduce the possibility of:
- Scratching vehicle paint
- Damaging trailer surfaces
- Creating sharp metal edges during use
For professional users, this helps improve operational convenience while protecting equipment.
IP67 Waterproof Protection and Automatic Load Brake
Heavy-duty recovery equipment must perform reliably in challenging outdoor environments.
The featured 12000LBS electric winch includes:
- IP67 waterproof protection
- Sealed motor housing
- Wear-resistant gear system
- Automatic load brake
- Freespool function
These features are designed to support reliable operation during demanding recovery tasks.
IP67 Waterproof Protection
Electric winches are often installed on vehicles exposed to outdoor conditions.
The IP67 protection design helps protect internal components against common environmental challenges, including:
- Rain
- Dust
- Mud
- Outdoor working conditions
The sealed motor housing provides additional protection for the motor system during operation.
Automatic Load Brake
The automatic load brake helps maintain load control during recovery operations.
For professional users, braking performance is an important consideration because stable load control directly affects operating efficiency and safety.
Freespool Function
The freespool function allows operators to quickly release the rope manually before beginning a recovery task.
This helps improve preparation efficiency during recovery operations.
Technical Specifications of 12000LBS Electric Winch
For buyers comparing an electric winch for sale, reviewing detailed specifications is essential.
The following specifications summarize the featured heavy-duty electric winch:
| Specification | Details |
| Rated Line Pull | 12,000 lbs (5,443 kg) Single Line Pull |
| Voltage | 12V / 24V |
| Motor Power | 3.9 kW / 5.35 HP |
| Gear Reduction Ratio | 203:1 |
| Gear Train | Three-Stage Planetary Gear Drive |
| Brake System | Automatic Load Brake |
| Rope Type | Premium Synthetic Rope |
| Rope Diameter & Length | 9 mm × 12 m |
| Drum Size | 64 mm × 233.5 mm |
| Mounting Bolt Pattern | 255 mm × 114 mm – 11 mm |
| Overall Dimensions | 527 mm × 160 mm × 217 mm |
| Net Weight | 23 kg |
| Gross Weight | 27 kg |
| Packing Size | 630 mm × 260 mm × 380 mm |
| Waterproof Protection | IP67 |
| Vertical Lifting | 750 kg |
Pulling Performance of 12000LBS Electric Winch
The performance of an electric winch depends on the relationship between pulling force, line speed, and current consumption.
The following data shows the performance range of this heavy-duty winch:
| Line Pull | Current |
| 0 | 80A |
| 2,000 lbs (907 kg) | 180A |
| 4,000 lbs (1,814 kg) | 240A |
| 6,000 lbs (2,722 kg) | 280A |
| 8,000 lbs (3,628 kg) | 330A |
| 10,000 lbs (4,536 kg) | 380A |
| 12,000 lbs (5,443 kg) | 400A |
At the maximum rated pulling capacity:
- Pulling force reaches 12,000 lbs (5,443 kg)
- Current consumption reaches approximately 400A
Conclusion: Selecting the Right 12000LBS Electric Winch for Professional Applications
Choosing the right electric winch requires more than comparing maximum pulling capacity. The right winch depends on several factors, such as pulling capacity, vehicle voltage, rope choice, gear structure, and working environment.
This 12000lbs electric winch is built with a 3.9kW motor, three-stage planetary gear system, synthetic rope, IP67 protection, and automatic load brake. It is designed for truck recovery, SUV recovery, towing, and off-road use.
Choosing an electric winch depends on the actual application needs, product specifications, and supplier reliability. Baoding OTOY Trading Co., Ltd provides technical information and solutions for different recovery and towing applications.
