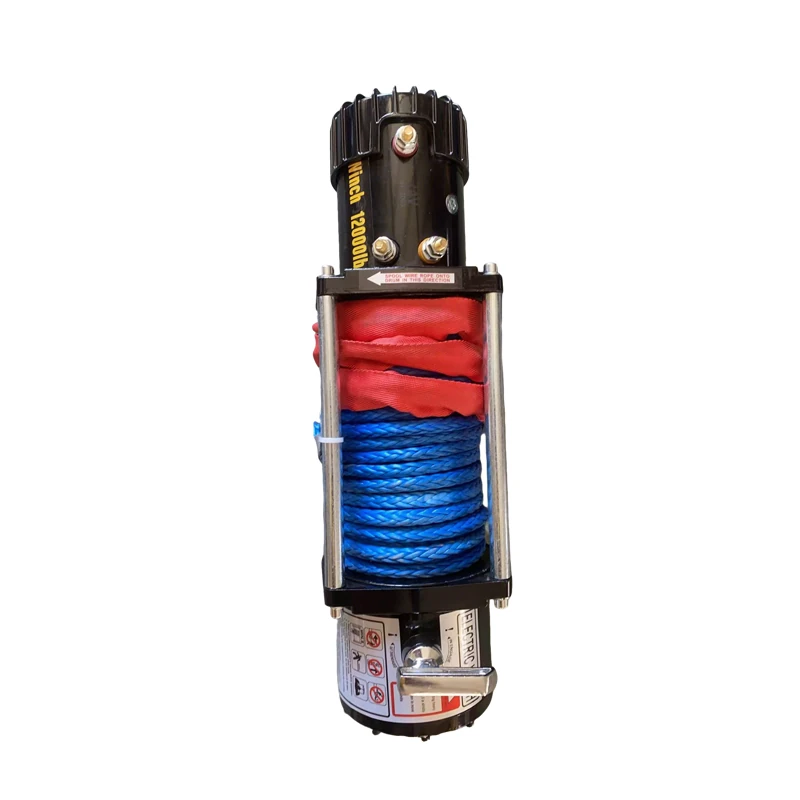

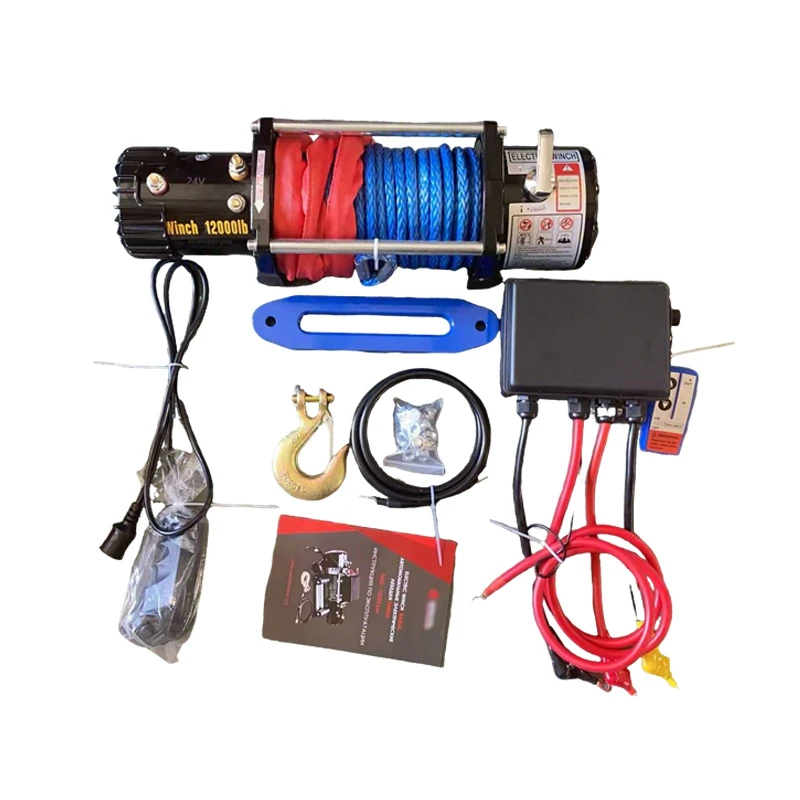

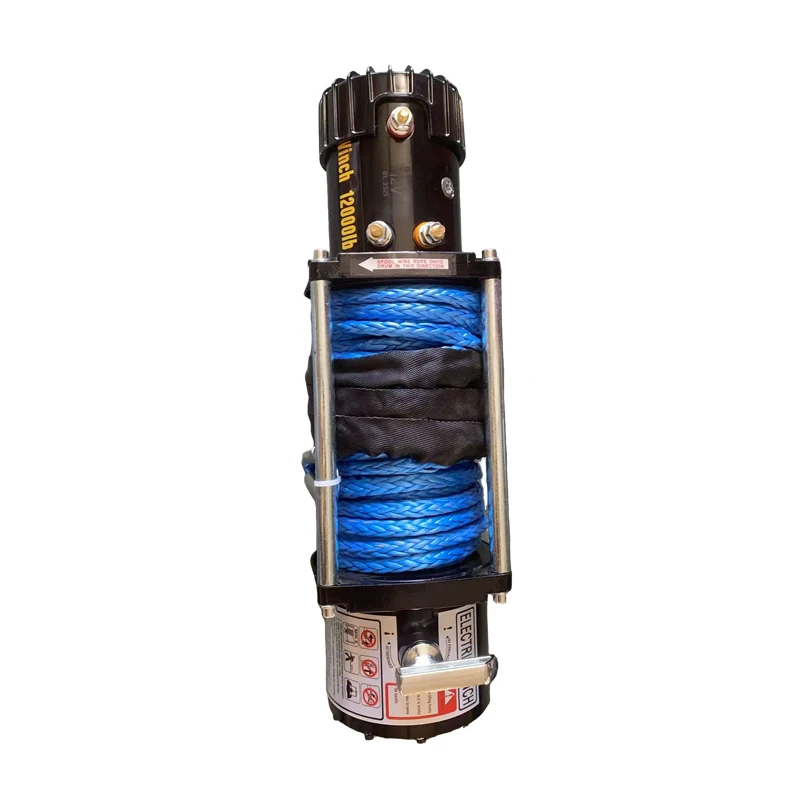

Heavy Duty 12000LBS 12V/24V Synthetic Rope Electric Winch for Truck SUV Off-Road Recovery & Towing
This 12000LBS 12V/24V dual-voltage heavy-duty electric winch is specially designed for large vehicles and extreme off-road conditions. Equipped with high-strength safe synthetic rope, upgraded high-power motor and reinforced gear system, it provides stable super-heavy pulling force. Featuring IP67 waterproof, auto load brake and freespool function, it is the ultimate recovery tool for trucks, SUVs and heavy off-road vehicles in various harsh rescue and towing scenarios.
FEATURES
SPECIFICATIONS
| Vertical lifting | 750kg | Gear reduction ratio | 203：1 | Rated Line Pull | 12000lbs(5443kgs) single line |
| Motor | 3.9kw/5.35hp | Wire rope (Dia * L ) | 9mmx12m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 64mmx233.5mm | Overall dimensions (L*W*H) | 527mmx160mmx217mm |
| Weight | N.W.23.0kg G.W.27.0kg | Mounting bolt pattern | 255mmx114mm-11mm | Packing size | 630mmx260mmx380mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 24.9(7.6) | 80 | 1 | 12000(5443) | 13(5) |
| 2000（907） | 16.1(4.9) | 180 | 2 | 9530(4323) | 23(11) |
| 4000（1814） | 10.8(3.3) | 240 | 3 | 7540(3420) | 69(21) |
| 6000（2722） | 8.5(2.6) | 280 | 4 | 5950(2699) | 92(28) |
| 8000（3628） | 7.2(2.2) | 330 | |||
| 10000（4536） | 5.9(1.8) | 380 | |||
| 12000（5443） | 5.2(1.6) | 400 | |||
