For ATV and UTV users, choosing the right electric winch goes beyond rated capacity—it’s about reliability, safety, and specifications that match real-world working conditions. Among all compact recovery solutions, the 4000lbs electric winch has become one of the most widely used options for off-road vehicles, light utility equipment, and farm applications.
This guide is built around our 4,000 lbs electric winch, with a detailed breakdown of the core technical specifications behind its rated pulling capacity—offering buyers and distributors a clear framework for evaluation.
Understanding the Core Specifications of a 4000lbs Electric Winch
Permanent Magnet DC Motor (12V / 24V Options)
This electric winch is equipped with a 1.2kW (1.6HP) permanent magnet DC motor, available in both 12V and 24V configurations.
The motor design provides:
- Stable torque output during load changes
- Efficient energy conversion with reduced heat generation
- Reliable operation in repeated recovery cycles
The dual-voltage design allows compatibility with different vehicle electrical systems. Most ATVs and UTVs operate on 12V electric winch, while some utility platforms may use 24V electric winch for reduced current load. Correct voltage matching is essential for safe and stable operation.
Steel Cable Structure and Durability
This model uses a 5mm × 10m galvanized steel cable, designed for outdoor recovery environments.
The galvanized coating provides resistance against:
- Corrosion from moisture and mud
- Surface abrasion from rocks and rough terrain
- Environmental wear from long-term outdoor use
A safety latch hook is integrated into the cable system to prevent load slippage during operation. For B2B buyers in agriculture, construction, and off-road equipment markets, steel cable remains a durable and cost-effective solution compared to synthetic alternatives.
Three-Stage Planetary Gear System
The winch adopts a three-stage planetary gear reduction system with a 136:1 ratio.
This structure plays a critical role in converting motor speed into usable torque. Key advantages include:
- High torque output in a compact housing
- Even load distribution across gear stages
- Reduced mechanical wear under heavy use
- Stable performance during repeated pulls
Planetary gear systems are widely used in professional-grade recovery equipment because they offer both durability and mechanical efficiency.
Line Pull Performance and Electrical Load
The performance of the winch changes depending on load conditions. Under different pulling forces, line speed and current draw vary as follows:
- 1000lbs: 9.5 ft/min (64A)
- 2000lbs: 8.5 ft/min (98A)
- 3000lbs: 7.2 ft/min (148A)
- 4000lbs: 5.2 ft/min (170A)
This data reflects real operating behavior: as load increases, speed decreases and electrical demand rises. Understanding this relationship helps users design appropriate power systems and avoid overloading vehicle batteries.
Automatic Safety Brake System
Safety is a key requirement for any recovery equipment. This winch includes a built-in automatic brake system, which engages immediately when the control button is released.
This function ensures:
- Instant load locking during operation
- Prevention of accidental cable release
- Stable control during vertical lifting applications
The winch also supports 400kg vertical lifting capacity, where the brake system plays a critical role in maintaining load stability.
Structural Design and Dimensions
The winch is designed with a compact and durable structure suitable for ATV and UTV mounting systems.
Key physical specifications include:
- Overall size: 316 × 120 × 106mm
- Net weight: 8.0kg
- Gross weight: 12.0kg
- Mounting bolt pattern: 76mm × 8.5mm
This compact design fits most off-road vehicle mounts with minimal impact on vehicle balance or front-end weight distribution.
Key Features That Define Performance
Galvanized Steel Cable System
The 5mm × 10m steel cable ensures stable pulling performance under harsh conditions. It is engineered for repeated outdoor use where abrasion and corrosion resistance are essential.
Wired Handheld Remote Control
The included wired remote controller allows operators to control the winch from a safe distance. Wired operation ensures stable signal transmission and eliminates concerns about wireless interference or battery failure.

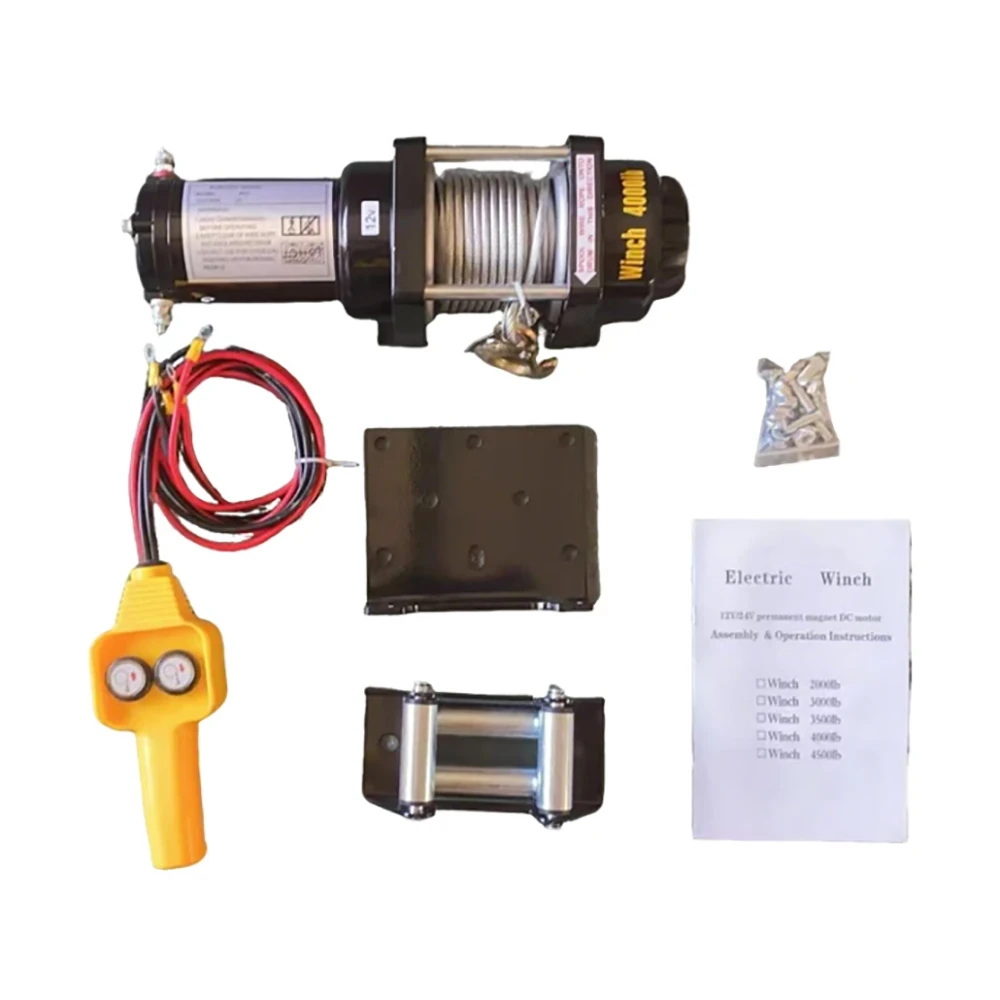

Complete Mounting Kit
The product is supplied with a full mounting kit designed for straightforward installation. The standardized mounting structure allows compatibility with common ATV and UTV winch plates.
Application Scenarios for 4000lbs Electric Winches
ATV and UTV Recovery Systems
For most single-vehicle recoveries in mud, sand, or snow, the 4,000 lbs capacity delivers ample pulling force when properly mounted and operated within rated limits.
Agricultural and Farm Equipment
On farms, electric winches are commonly used for light towing, pulling small trailers, and assisting with equipment positioning. The galvanized steel cable structure is particularly suitable for dusty and muddy environments where durability is required.
Light Utility and Trailer Applications
This small electric winch can also be integrated into small trailer systems or utility platforms for loading and unloading assistance. The 10-meter steel cable length provides practical reach for most short-distance recovery or loading tasks.
Marine and Outdoor Use
For small boats and watercraft recovery, the galvanized coating on the steel cable offers resistance against moisture exposure. This makes it suitable for occasional marine-related applications such as boat trailer loading.
Common Mistakes to Avoid
For safe and efficient operation, users should avoid the following mistakes:
Overloading Beyond Rated Capacity
The winch is designed for a maximum single-line pull of 4000lbs. Exceeding this limit can result in motor strain, gear wear, or cable failure.
When higher pulling force is required, mechanical assistance such as a pulley system should be used instead of overloading.
Improper Cable Alignment
The cable should always be aligned straight during operation. Angled pulls increase stress on the cable and reduce system efficiency.
Ignoring Cable Damage
Even minor cable damage can significantly reduce load capacity. Regular inspection is essential for safe operation.
Unsafe Operation Practices
Operators should always maintain a safe distance during winching and avoid standing in line with the cable under tension. Protective gloves are recommended when handling steel cable.
Conclusion
The 4000lbs electric winch with galvanized steel cable is a reliable and versatile solution for ATV, UTV, and light utility recovery applications. With its 1.2kW permanent magnet DC motor, 136:1 three-stage planetary gear system, automatic safety brake, and sealed all-metal construction, it delivers stable performance across a wide range of working environments. For B2B buyers, this winch represents a balanced combination of durability, compact design, and consistent mechanical performance. When properly installed and maintained, it provides dependable recovery support in off-road, agricultural, and light industrial applications. If you are interested in our products, please feel free to contact us for more information and a quote.
FAQ
Q1: What is the maximum pulling capacity of this electric winch?
A: This winch delivers a maximum single-line pull of 4,000 lbs (1,814 kg). For heavier recovery tasks, we recommend using a pulley system to reduce load on the motor and cable rather than exceeding the rated capacity.
Q2: Can this winch be installed on both 12V and 24V vehicles?
Yes. This model is available in both 12V and 24V configurations. Most ATVs and UTVs use 12V systems, while some utility platforms opt for 24V to reduce current draw. Always verify your vehicle’s voltage before installation to ensure safe and stable operation.
Q3: Is the steel cable corrosion-resistant for outdoor use?
Yes. The 5mm × 10m cable features a galvanized coating that provides protection against moisture, mud, abrasion from rough terrain, and long-term environmental wear—making it well-suited for agricultural, off-road, and marine-adjacent applications.
