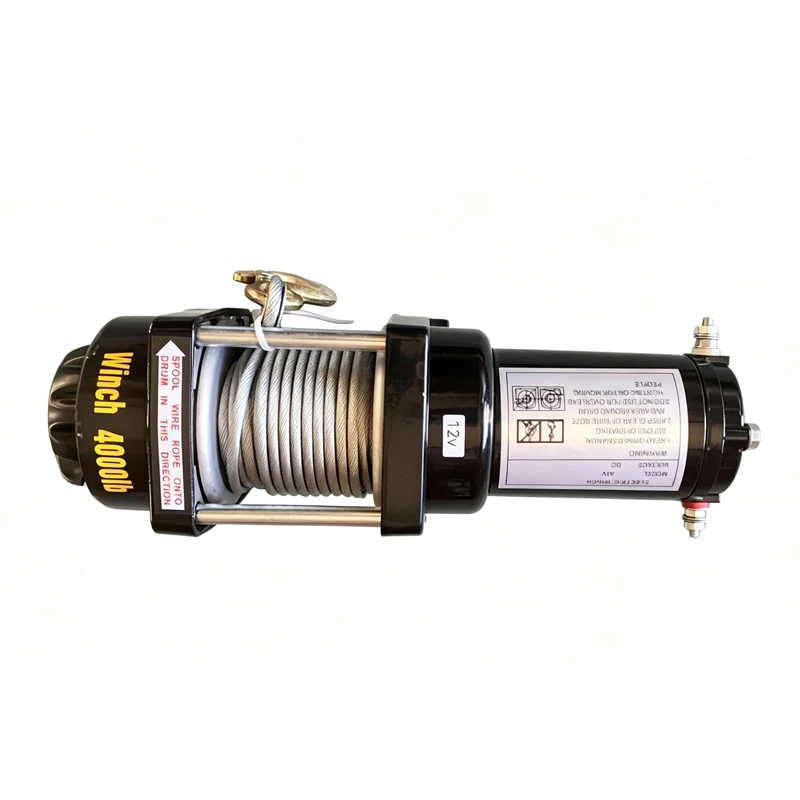

4000lbs 12V 24V Electric Winch Steel Cable Offroad ATV UTV Recovery Winch with Hand Remote Control Complete Mounting Kit

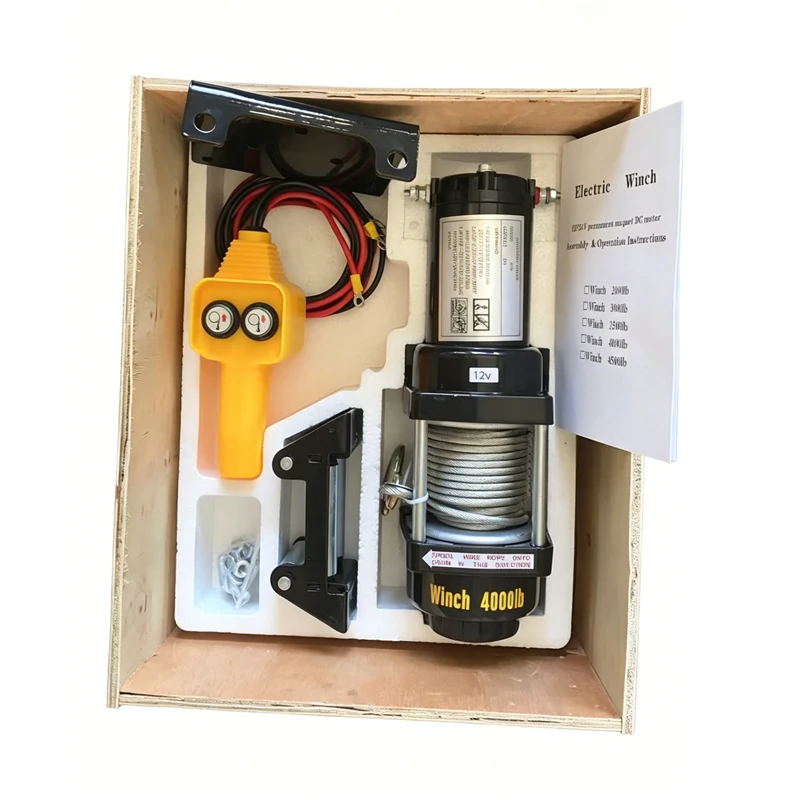

This 4000lbs electric winch with steel cable is an essential outdoor recovery tool for off-road lovers and farmers.And electric motors are available in 12V or 24V power. Fitted with high-strength galvanized steel cable, wired handheld controller and full mounting hardware, it can easily pull stuck ATVs, UTVs and small boats. The automatic safety brake guarantees stable load holding, while the complete accessory set allows simple DIY installation. Durable, compact and multi-scene usable, it offers reliable traction support for all your outdoor work and off-road trips.
FEATURES
SPECIFICATIONS
| Vertical lifting | 400kg | Gear reduction ratio | 136：1 | Rated Line Pull | 4000lbs(1814kgs) single line |
| Motor | 1.2kw/1.6hp | Wire rope (Dia * L ) | 5mmx10m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 37mmx72mm | Overall dimensions (L*W*H) | 316mmx120mmx106mm |
| Weight | N.W.8.0kg G.W.12.0kg | Mounting bolt pattern | 76mm-8.5mm | Packing size | 410mmx200mmx340mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 9.5(2.9) | 26 | 1 | 4000(1814) | 4.9(1.5) |
| 1000（907） | 8.5(2.6) | 64 | 2 | 3250(1474) | 14.4(4.4) |
| 2000（1814） | 7.2(2.2) | 98 | 3 | 2200(998) | 19(5.8) |
| 3000（2722） | 5.2(1.6) | 148 | 4 | 1700(771) | 26.6(8.1) |
| 4000（2722） | 3.6(1.1) | 170 | 5 | 1600(726) | 34.4(10.5) |
