Introduction
In fast-paced work environments such as warehouses, hospitals, retail stores, and institutions, the time spent on material handling is significant. Unfortunately, many models suffer from problems such as slow lifting speed, cumbersome steering, and excessive noise. This manual pallet truck has a powerful 4,400-pound (2,000-kilogram) load capacity and can reach its maximum lifting height with just 5 pumps. Compared to traditional pallet jacks, this cuts lifting time by nearly half. When combined with its powder-coated frame, chrome bearing bushings, and effortless steering design, the result is a tool that delivers an exceptional blend of speed, durability, and user comfort. This guide will show you in detail why this “5-pump lift” manual pallet truck is the right choice for your material handling needs.
What is a Manual Pallet Truck?

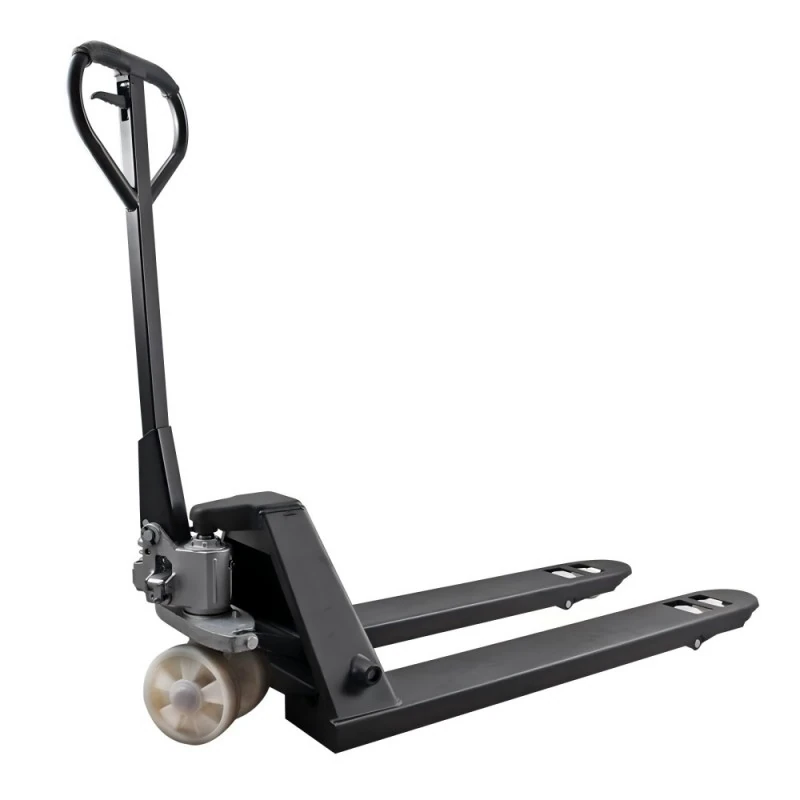

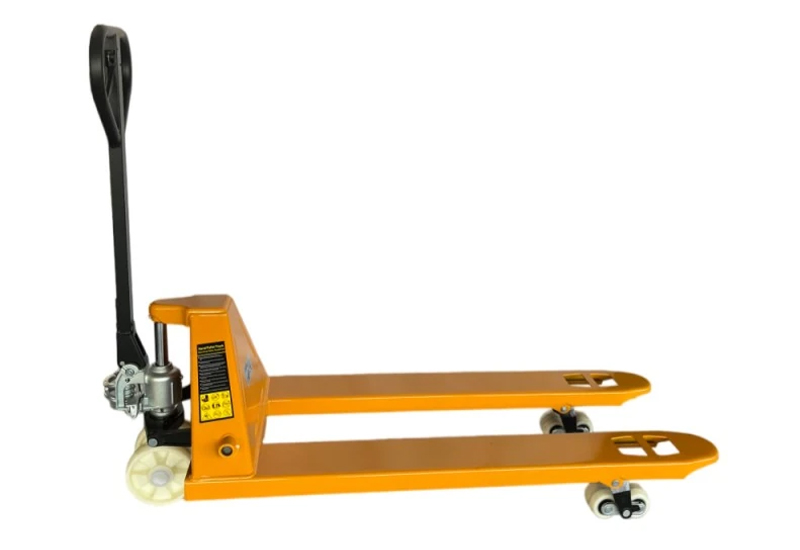

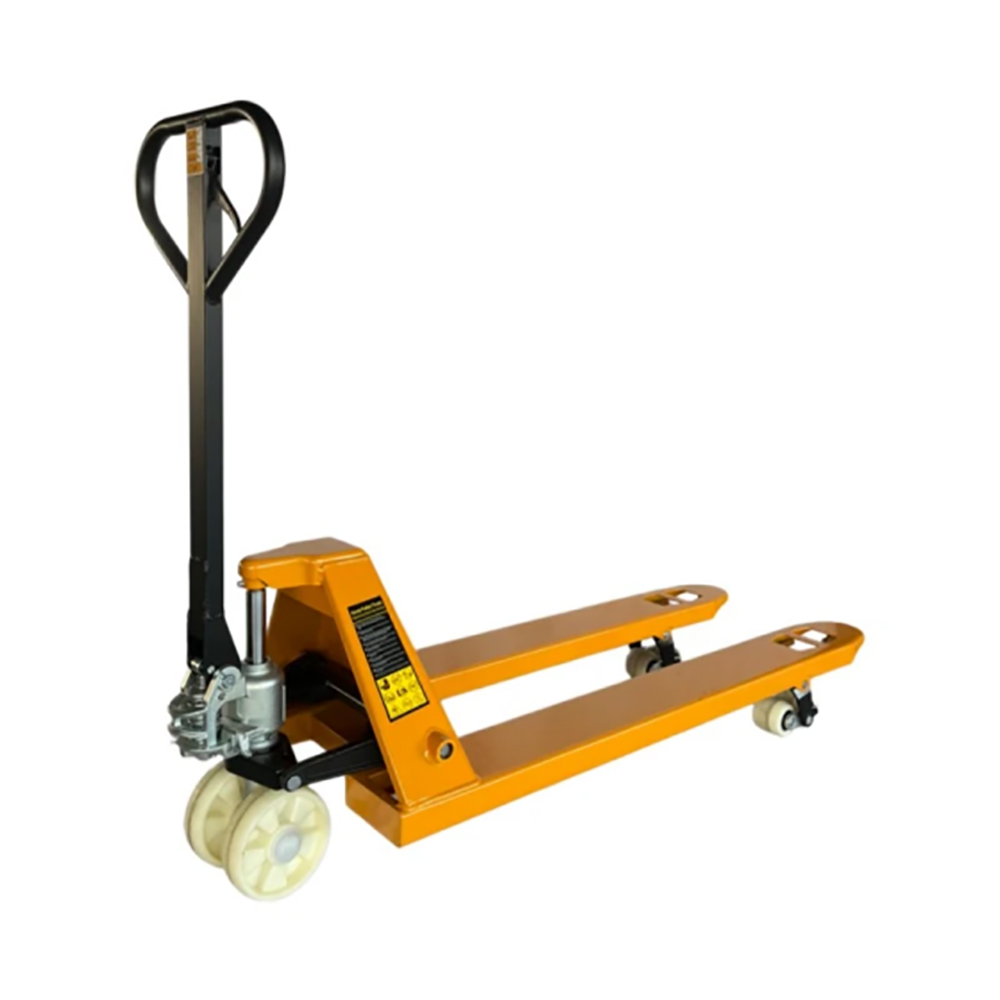

A manual pallet truck, also known as a hand pallet jack, pallet pump, or walkie, is a material handling device consisting of two steel forks, a hydraulic pump unit, a steering handle, and wheels. When you pump the handle up or down, the hydraulic pump lifts the forks, thus raising the palletized goods off the ground. Then pull or push the truck to deliver the goods to their destination.
Our manual pallet trucks feature powder-coated frames that are wear-resistant and rust-proof. In addition, chrome-plated bearing bushings and fittings ensure smooth and quiet operation. This model is designed to last much longer than its cheaper alternatives.
Product Specifications
| Specification | Detail |
| Unit Type | Manual Pallet Truck |
| Load Capacity | 2000 kg / 4,400 lb |
| Fork Size (W × L) | 550 × 1200 mm |
| Fork Profile | 160 × 60 mm (6.3″ × 2.4″) |
| Max Fork Height | 200 mm (7.8″) |
| Min Fork Height | 75 mm (2.95″) |
| Steering Wheel | 180 × 50 mm (φ7″ × 2″) |
| Load Roller (Tandem) | 80 × 70 mm (φ2.9″ × 2.8″) |
| Load Roller (Single – Special Order) | φ2.9″ × 3.7″ |
Specifications:
The fork dimensions are 550×1200 mm, which is the standard width and length, compatible with the most common pallets.
Dual wheels provide better stability. If you need to accommodate a pallet with a narrow bottom slot, you can order a special single-wheel configuration.
Why Choose This 5-Pump High-Efficiency Pallet Truck?
1. Excellent lifting speed
Most standard manual pallet trucks require 8 to 10 presses of the handle to reach their maximum lifting height. This model only needs to press down 5 times to reach its maximum lifting height. Faster lifting means more goods can be moved per hour, less operator fatigue, and higher overall productivity.
2. Easy Steering and Quiet Operation
This pallet truck is equipped with chrome-plated bearing bushings and joints, reducing friction and resulting in smoother steering and lower operating noise.
Low noise is a major advantage for quiet environments such as hospitals, clinics, libraries, or office buildings. For warehouses and factories, smooth steering means less strain on operators’ wrists and shoulders throughout the shift.
3. Articulation Steer Axle
The articulated steering shaft on this transport vehicle supports a 180° operating radius. Therefore, you can easily turn, maneuver, and move in restricted areas, such as truck trailers, retail store back warehouses, or crowded loading platforms, without getting stuck or damaging your goods.
4. Durability
This model features a powder-coated frame that resists chipping and rust, and resists daily wear and tear. The combination of chrome-plated bushings, galvanized pump components, and high-quality welding ensures this hand pallet truck can reliably serve you for many years.
Wheel Options & Floor Protection
You can choose white nylon wheels for rough warehouse floors, black rubber wheels for quiet use in hospitals or offices, or upgrade to red PU wheels for ultra-quiet, non-marking performance. Tandem dual wheels come standard; single rollers are available for narrow pallet slots.
Ergonomic Handle: Safety & Comfort in Three Positions
The Economic Quick Lift Manual Pallet Truck features a 3-position loop handle with a comfortable rubber grip .
Lower Position: Pull up on the fingertip control to lower the load gently.
Neutral Position: Set the control to the middle when transporting a raised load.
Lift Position: Push down the control, then pump the handle. Just five pumps reach full height.
The rubber grip reduces hand fatigue and provides a secure hold. An adjustable push rod assembly ensures consistent performance over years of use.
Applications
This product is suitable for a variety of environments.
- Fast-paced Retail Stores – Requires just 5 pumps per lift, enabling rapid restocking.
- Hospitals and Institutions – Black rubber wheels operate silently and won’t damage floors.
- Warehouses and factories – white nylon wheels and a 4,400-pound load capacity meet the needs of heavy-duty operations.
- Office – Compact and flexible, suitable for light material handling.
FAQ
Q: What is the minimum order quantity (MOQ)?
A: The MOQ for standard models is 30 units. Discounts can be negotiated for bulk orders; excluding sample orders, please consult sales for details.
Q: What shipping methods are supported?
A: We can provide sea freight (FCL/LCL), air freight, and international express (DHL/UPS/FedEx). You can choose according to the order quantity and time requirements. We can assist in arranging logistics and providing customs clearance documents.
Q: How to check the order progress?
A: An order number will be provided after placing the order. You can track the production and shipping status in real time through the website order query system, sales specialist, or email.
Conclusion
The economical, fast-lift manual pallet truck combines speed, durability, and flexibility. Only 5 presses are needed to reach the maximum lifting height, saving you time and reducing fatigue. Chrome-plated bushings and a powder-coated frame ensure durable performance. In addition, you can customize the wheel and fork configurations, making our product suitable for use whether you are working in a warehouse, hospital, retail store or factory.
If you are interested in our products, please feel free to contact us for a quote.
