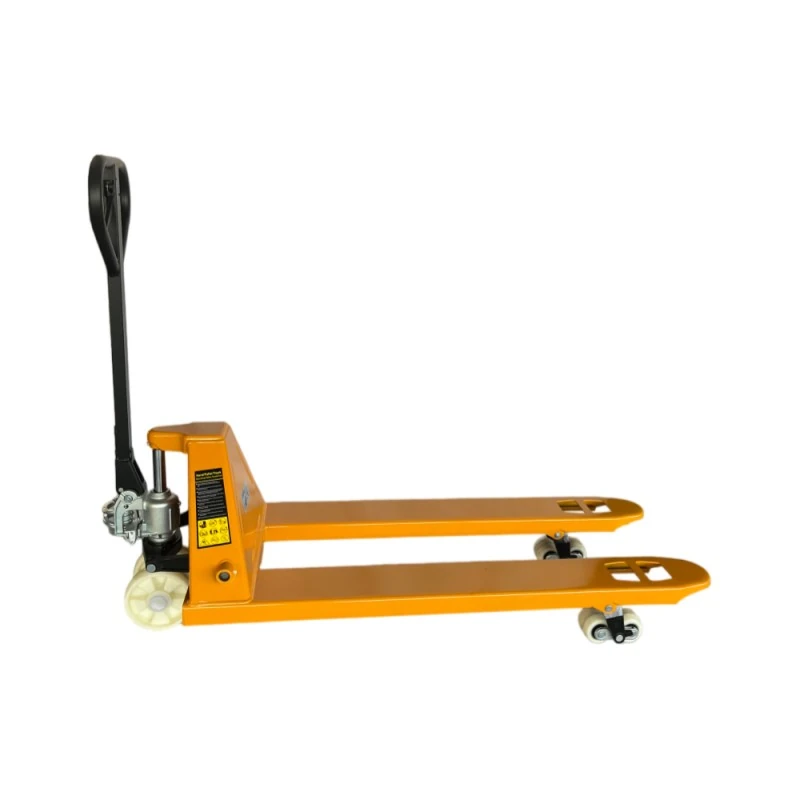

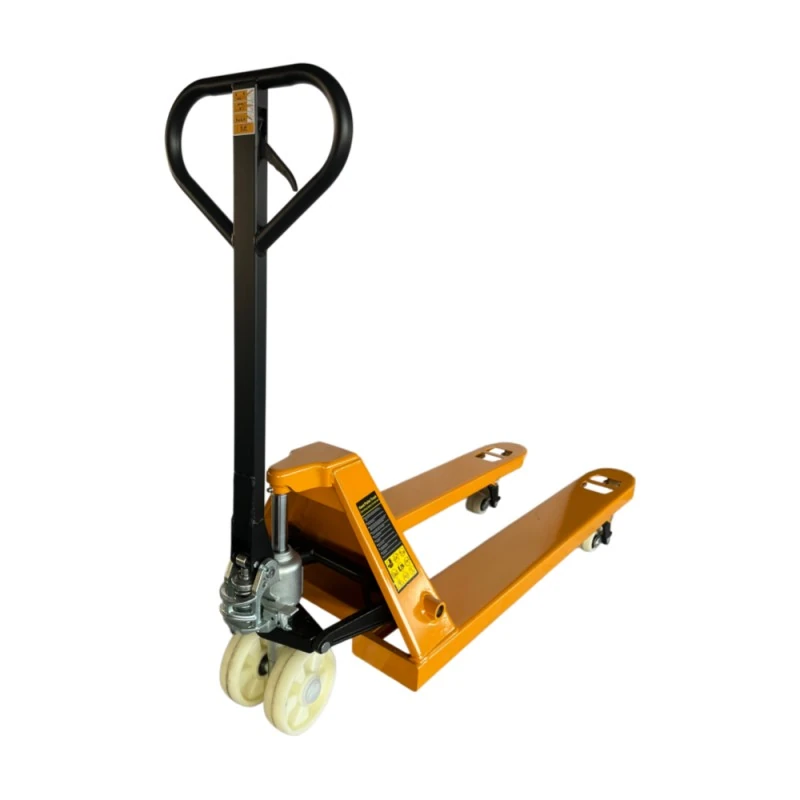

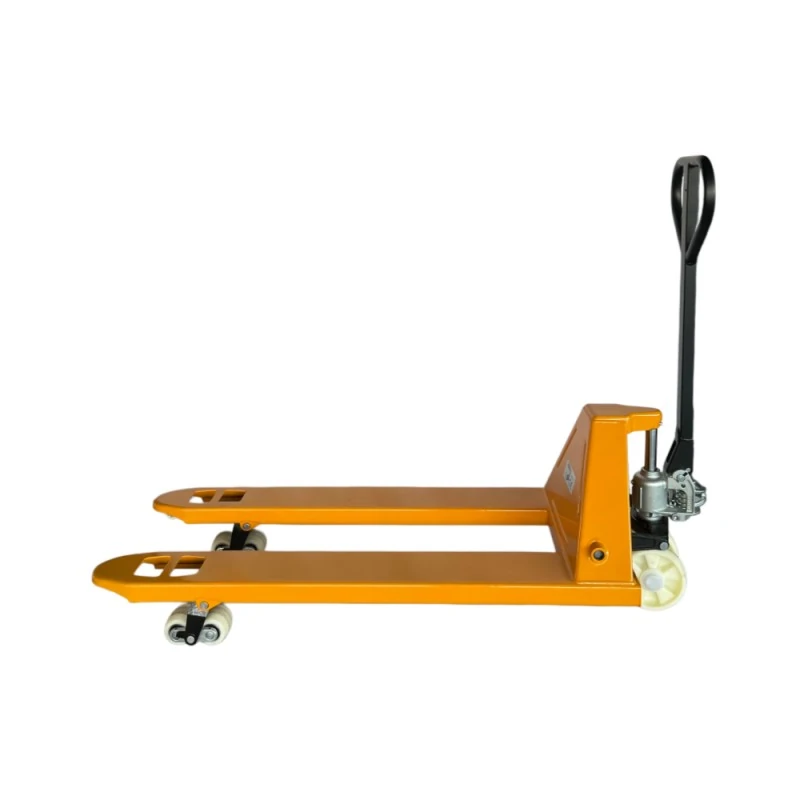

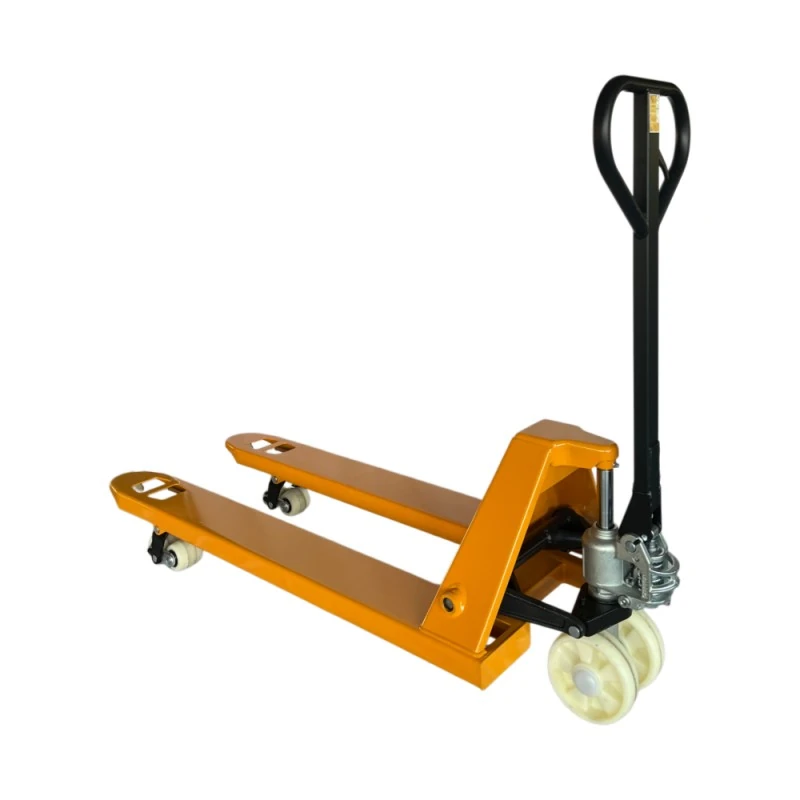

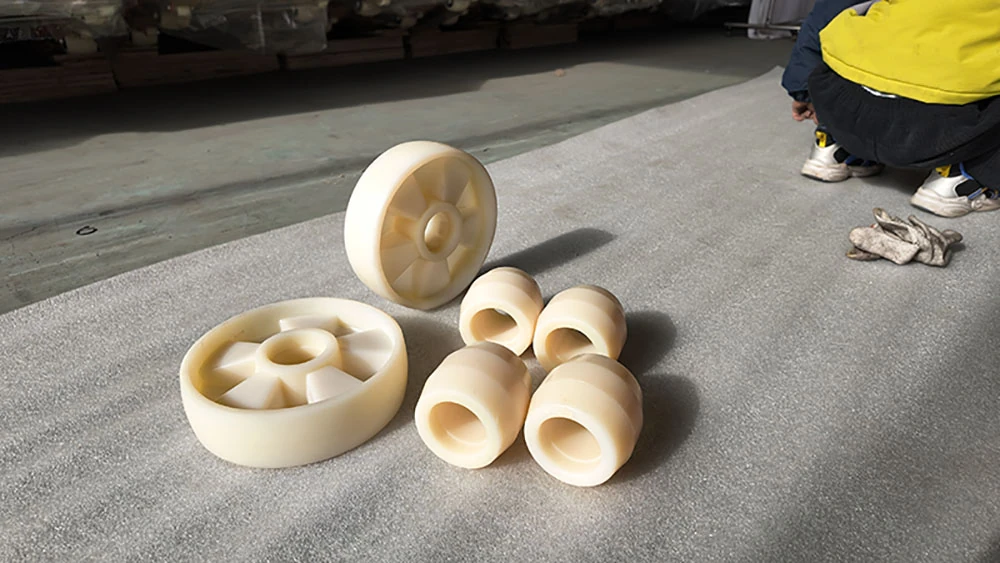

Economic Quick Lift Manual Pallet Truck4,400lb| 550*1200MM Forks| White Nylon Wheels/Black Rubber Wheels

Economic Quick Lift Manual Pallet Truck4,400lb| 550*1200MM Forks| White Nylon Wheels/Black Rubber Wheels

Category:

4,400lb load capacity hand pallet truck lifts pallets with only five pumps!!! It is the ideal choice for fast-paced manual material transportation over short distanced in stores, hospitals, institutions, offices, warehouses and factories.
This ergonomic, powder coated pallet truck is easy to maneuver with effortless steering. Chromed bearing bushings and joints ensure quite operation and a long life. High-quality – Great Price.

Get a Quote

FEATURES

Option of Single or Tandem Fork Rollers

Single rollers are special order.

Ergonomic Handle with Comfortable Rubber Grip

Handle offers optimized safety and comfort. Three position operational handle lever for lifting, transportation and lowering purposes.

Lower Position- to lower load, pull up on the finger tip control.

Neutral Position -place fingertip control in this position when pulling the truck load.

Lift Position – to raise load, push down on finger tip control, pump handle to raise the load.

Galvanized One-Piece Integrated Hydraulic Pump with overload relief valve

Axle Mounted, 3 Position Loop Handle (Up/Down/Neutral)

Adjustable Push Rod Assembly

Fork Tip Entry/Exit Roller

180° Operations Arc

Articulation Steer Axle

SPECIFICATIONS

Unit Type:	Manual Pallet Truck
Load Capacity:	2000kg (4,400lb)
Fork Dimensions:	550x1200MM
Size of Fork:	160 x 60MM (6.3"x 2.4")
Max Fork Height:	200MM ( 7.8")
Minimum Fork Height:	75MM (2.95")
Steering Wheel:	180 x 50MM (φ7" x 2")
Load Roller Tandem:	80 x 70MM (φ2.9" x 2.8")
Load Roller Tandem (special order)	φ2.9" x 3.7"
