Key Takeaways

• A high lift pallet truck can move pallets and lift loads for work that needs both functions.

• Choose the truck based on your heaviest load and the height you need to lift.

• Manual models are good for occasional work, while electric models are better for frequent use.

• Choose the wheels based on the floor, load, and noise level at your workplace.

• Before ordering, check the pallet type and floor condition to make sure the truck fits your work needs.

What Is a High Lift Pallet Truck?

A high-lift pallet truck is a walk-behind material handling tool designed to move and lift palletized loads. Unlike a standard pallet truck, which is mainly used for horizontal pallet transport, a high-lift pallet truck can raise loads to a more convenient working height. This lifting function makes it useful for tasks such as order picking, positioning, loading, and unloading.

How Does a High Lift Pallet Truck Work?

A high-lift pallet truck uses a hydraulic scissor lift to raise loads after the forks enter the pallet. The hydraulic system powers the lifting action, while the scissor structure raises the forks to the required height. Once the forks are under the pallet, the truck can move the load and lift it for packing, assembly, or other warehouse tasks.

What Is a High Lift Pallet Truck Used For?

Numerous warehouse tasks involve pallet transport alongside goods-raising operations. Packing and assembly stations are typical work scenarios for this kind of truck. It combines two functions into one device and removes the need for separate handling tools. Standard pallet trucks remain the better option for pure pallet-moving work with no lifting requirements.

Do You Need a High Lift Pallet Truck?

Your actual work requirements decide whether you need a high-lift pallet truck or a standard pallet truck. If your operators only move pallets, a standard pallet truck may be enough. If they also need to lift goods for packing, assembly, sorting, or workstation supply, a high-lift model can handle both moving and lifting in one unit.

A high-lift pallet truck can raise loads to a more suitable working height for tasks that would otherwise require workers to handle goods at pallet or floor level. This can make some warehouse tasks easier, but the actual benefit depends on the load, task, and working conditions.

How Do You Choose the Right High Lift Pallet Truck?

Choose a high-lift pallet truck based on the load, lifting task, pallet type, and working conditions. Once you know the truck fits your job, check the following points before you place an order.

What Capacity Do You Need?

Choose a capacity that covers your actual working load. Check the heaviest load you normally handle, not just the average load. A higher-capacity model may not offer much value if you mainly move light goods. If your normal load is close to the rated capacity, consider a higher-capacity model and confirm the working conditions with the supplier.

Manual or Electric: Which One Is Right for You?

Choose manual or electric based on how often the truck is used and how much work operators need to do. A hydraulic hand pallet truck may be enough for occasional lifting and moving tasks, especially when simple manual handling is required. For frequent or heavier handling work, an electric pallet truck can reduce physical effort during operation. Before choosing, consider the workload, workspace, budget, and charging conditions.

What Lifting Height Do You Need?

Choose a lifting height that matches the actual task rather than simply selecting the highest available option. If the truck is used for packing, assembly, or workstation supply, set the working height according to the job. The load should remain stable and easy to control at the required height.

Are the Pallet and Forks Compatible?

Check pallet and fork compatibility before ordering, especially when using a scissor-lift pallet truck. The truck must have enough clearance to enter the pallet and lift it correctly. If your pallet has a special bottom design, provide its type and size to the supplier before purchase.

Which Wheels Should You Choose?

Choose the wheel material according to the floor, load, and noise requirements. Rubber wheels can provide quieter and softer movement. PU wheels offer good wear resistance on smooth warehouse floors, while nylon wheels can suit hard floors and heavier loads, depending on the truck design. The right choice depends on the actual working environment.

Can It Work on Rough or Uneven Ground?

Check the manufacturer’s specifications before using a high-lift pallet truck outdoors or on uneven floors. Many pedestrian pallet trucks are designed for smooth, level, hard surfaces. A product described as an “all-terrain pallet truck” should not be treated as suitable for every rough-ground application. If the floor is uneven, confirm the wheel setup and operating conditions with the supplier.

What Should You Check Before Ordering?

Complete the main checks before placing your order. Confirm the rated capacity, lifting height, pallet compatibility, wheel type, operating method, safety features, and after-sales support. If the truck will work outside a standard warehouse environment, also confirm that its design matches the actual floor and operating conditions.

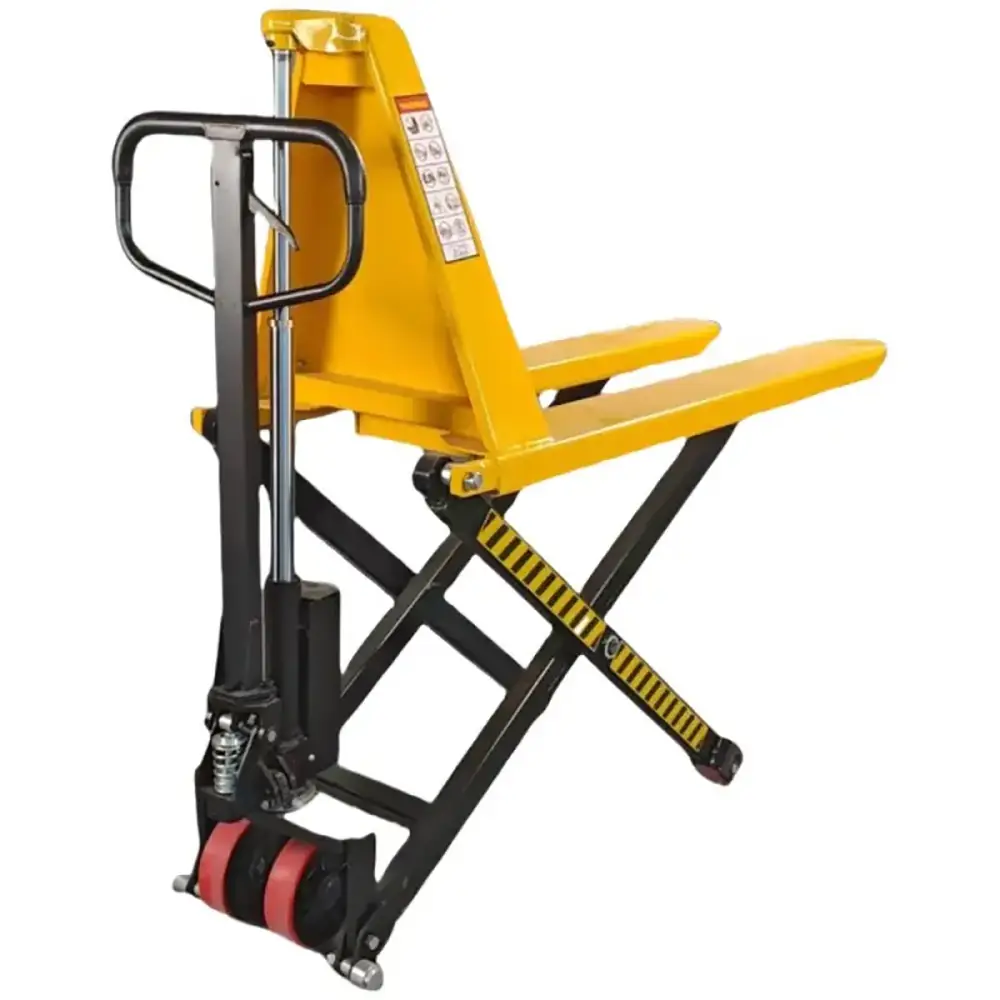

OTOY High Lift Scissor Pallet Truck: Product Fit

OTOY’s high-lift scissor pallet truck is available in 1-ton and 1.5-ton models, with manual and electric versions. It combines pallet handling with load lifting for warehouse tasks that need both functions.

OTOY High Lift Scissor Pallet Truck at a Glance

Key Feature	OTOY Options / Details
Capacity	1 Ton / 1.5 Ton
Operation	Manual / Electric
Lifting System	Hydraulic scissor lift
Wheel Options	Rubber / PU / Nylon
Pallet Type	Open-bottom pallets only
Main Use	Pallet handling and load lifting

The exact configuration should be confirmed with OTOY based on the load, pallet type, wheel requirements, and working conditions.

Scissor Lift and Hydraulic Design

The truck uses a hydraulic scissor lift to raise loads after the forks enter the pallet. This design supports both pallet movement and lifting work in one unit.

It also includes a quick lift function for lighter loads. A pressure relief and overload valve helps protect the hydraulic system when the load reaches the working limit.

Fork, Frame, and Handle Features

The truck has enclosed fork tips and reinforced fork frames for regular handling work. These parts should still be matched with the load and pallet used at the site.

The handle has a three-position control for lifting, moving, and lowering. This gives the operator direct control over the main truck functions during daily work.

Open-Bottom Pallet Requirement

Pallet compatibility is an important point for this model. OTOY specifies that the truck is designed for open-bottom pallets only.

If your pallets have a different bottom design, check the required clearance before ordering. You can also provide the pallet type and size to OTOY so the supplier can confirm whether the configuration is suitable.

Frequently Asked Questions

What Is a High Lift Pallet Truck Used For?

A high-lift pallet truck moves pallets while lifting goods to a practical working height, and it is widely used for packing, assembly and material-feeding tasks. The OTOY scissor-style pallet truck integrates both of these essential handling functions.

Should I Choose a Manual or Electric High Lift Pallet Truck?

Your choice should be based on handling frequency, operator workload and actual working conditions. If the work is simple or infrequent, a manual version can meet the need. For repeated heavy tasks, an electric version becomes a better fit. Since OTOY provides both configurations, buyers can confirm their preferred version when requesting a quote.

Should I Choose a 1-Ton or 1.5-Ton Model?

Start with the heaviest load that the truck will normally handle. Then consider pallet size, load dimensions, and the actual working environment.

OTOY offers both 1 Ton and 1.5 Ton versions. The appropriate choice should be confirmed against the actual application rather than selected only by the higher capacity number.

What Type of Pallet Can the OTOY High Lift Pallet Truck Handle?

The product is designed to work ONLY on open-bottom pallets.

This is an important compatibility requirement because the scissor lifting structure needs suitable clearance beneath the pallet. Buyers should confirm their pallet construction before placing an order.

Conclusion

Choose a high-lift pallet truck based on the actual load, lifting task, pallet type, floor condition, and working frequency. OTOY offers 1-ton and 1.5-ton scissor pallet trucks in manual and electric versions, with rubber, PU, and nylon wheel options. The model is designed for open-bottom pallets, so pallet compatibility should be confirmed before ordering. If you need help choosing the right pallet truck for your application, please contact OTOY. We can provide a suitable solution based on your load, pallet type, and working conditions.
