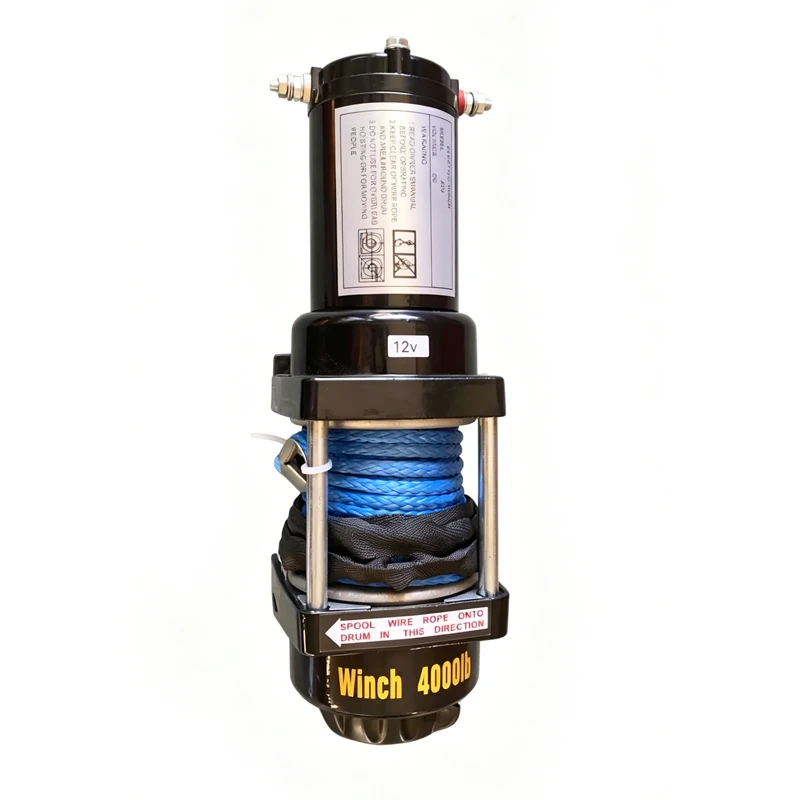

12V 24V 4000lbs Electric Winch with Safe Synthetic Rope, Wired Remote & Full Mount Kit for ATV UTV Off Road Recovery

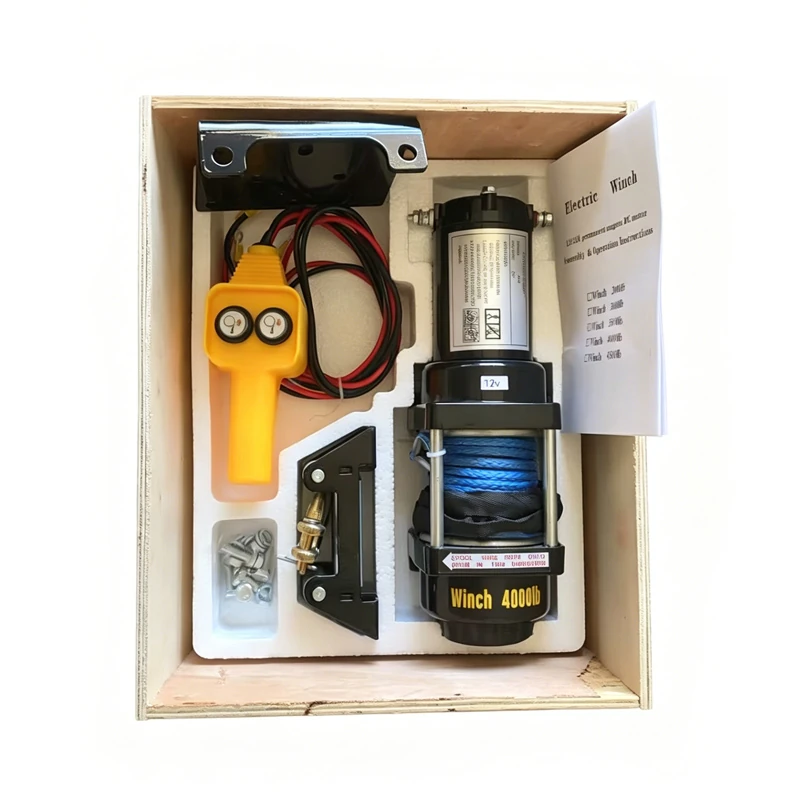

This 4000lbs electric winch is equipped with high-performance synthetic rope instead of steel cable. The synthetic rope is lightweight, rust-proof, fray-resistant and far safer — it won’t whip dangerously if snapped. This full kit comes with wired two-button remote, roller fairlead, solid safety hook, mounting plate and all installation bolts. Powerful permanent magnet motor suits ATV, UTV, trailer, farm hauling and off-road vehicle rescue, all accessories ready for instant setup.And electric motors are available in 12V or 24V power.
FEATURES
SPECIFICATIONS
| Vertical lifting | 400kg | Gear reduction ratio | 136：1 | Rated Line Pull | 4000lbs(1814kgs) single line |
| Motor | 1.2kw/1.6hp | Wire rope (Dia * L ) | 5mmx10m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 37mmx72mm | Overall dimensions (L*W*H) | 316mmx120mmx106mm |
| Weight | N.W.8.0kg G.W.11.0kg | Mounting bolt pattern | 76mm-8.5mm | Packing size | 410mmx200mmx340mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 9.5(2.9) | 26 | 1 | 4000(1814) | 4.9(1.5) |
| 1000（907） | 8.5(2.6) | 64 | 2 | 3250(1474) | 14.4(4.4) |
| 2000（1814） | 7.2(2.2) | 98 | 3 | 2200(998) | 19(5.8) |
| 3000（2722） | 5.2(1.6) | 148 | 4 | 1700(771) | 26.6(8.1) |
| 4000（2722） | 3.6(1.1) | 170 | 5 | 1600(726) | 34.4(10.5) |
