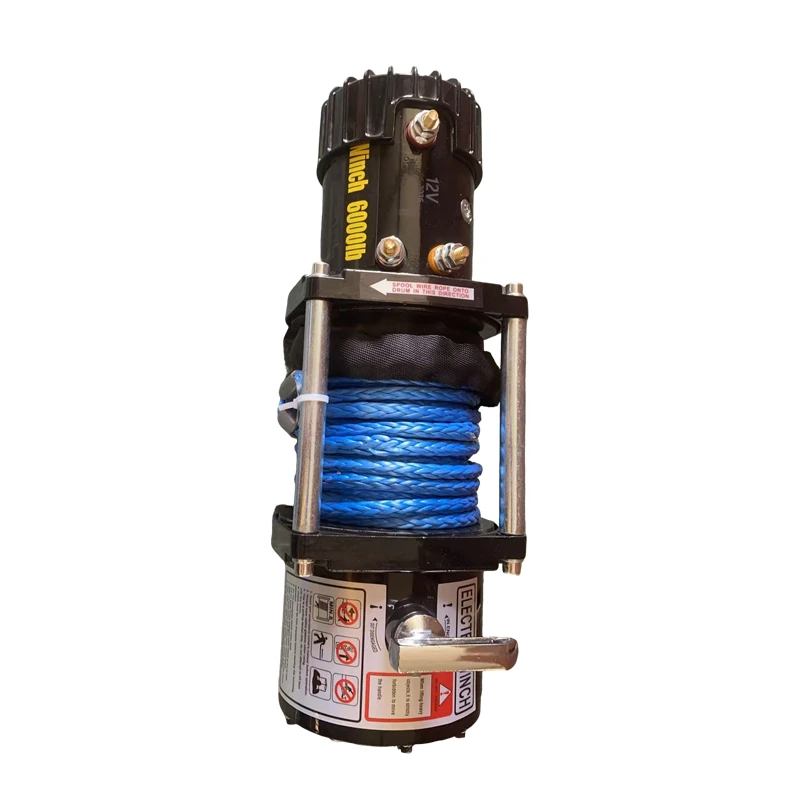

6000LBS Electric Winch 12V/24V with Synthetic Rope Heavy Duty Off Road Recovery Winch for ATV UTV Truck

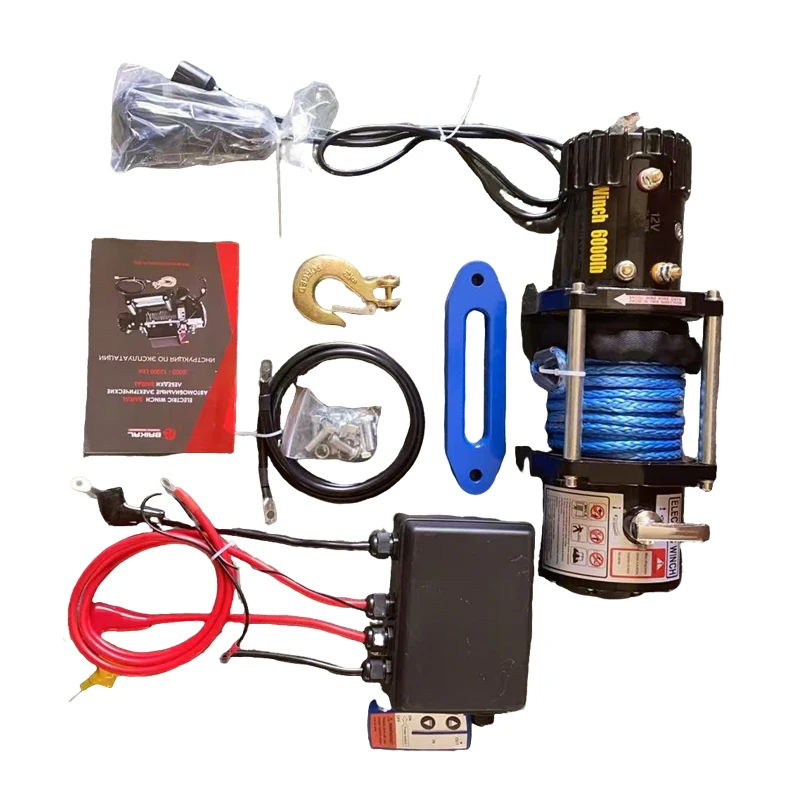

This upgraded 6000LBS 12V/24V dual-voltage electric winch is designed for heavy-duty off-road recovery and towing. Adopting safe and lightweight synthetic rope, it avoids steel cable rebound risks. Featured with powerful motor, stable 3-stage planetary gear system, auto load brake and IP67 waterproof performance, it delivers strong and reliable pulling power. Equipped with full accessories for easy installation, it is an ideal towing tool for ATV, UTV, trucks and trailers in outdoor rescue and farm work.
FEATURES
SPECIFICATIONS
| Vertical lifting | 500kg | Gear reduction ratio | 235：1 | Rated Line Pull | 6000lbs(2722kgs) single line |
| Motor | 2.0kw/2.7hp | Wire rope (Dia * L ) | 8mmx14m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 64mmx133.5mm | Overall dimensions (L*W*H) | 415mmx160mmx217mm |

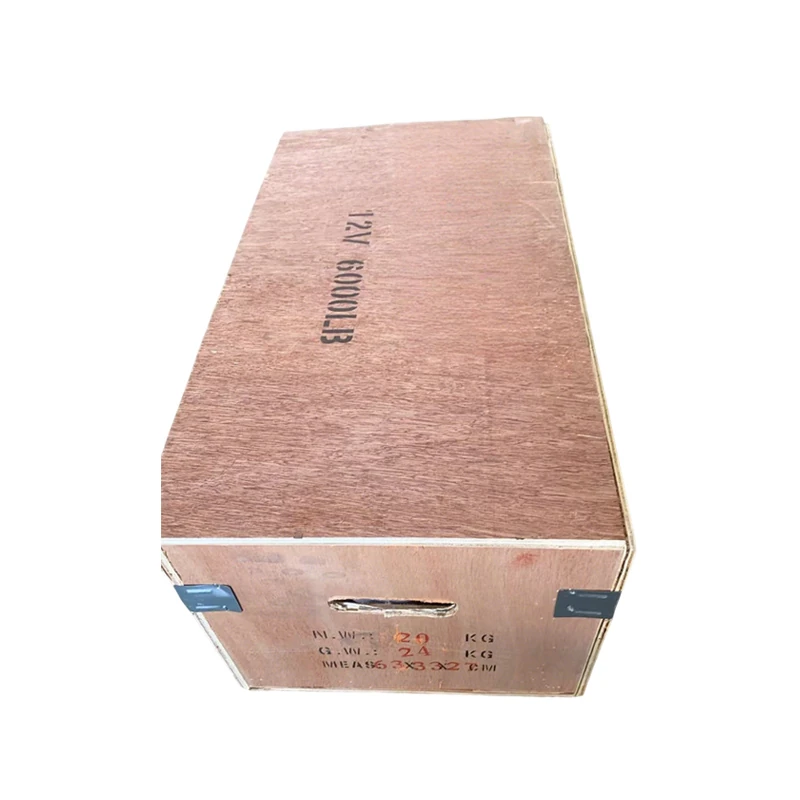

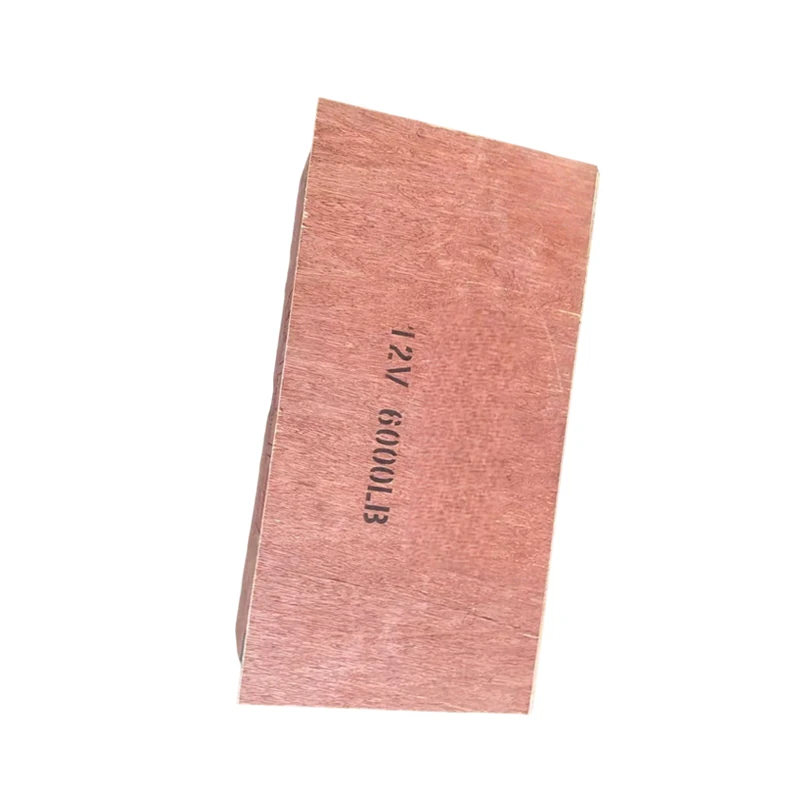

| Weight | N.W.20.0kg G.W.24.0kg | Mounting bolt pattern | 165mmx114mm-11mm | Packing size | 630mmx270mmx330mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 9.8(3.0) | 30 | 1 | 6000(2722) | 15(4.6) |
| 2000（907） | 7.5(2.3) | 120 | 2 | 9530(2263) | 15.1(8) |
| 4000（1814） | 4.9(1.5) | 210 | 3 | 7540(1941) | 43(13) |
| 6000（2722） | 2.9(0.9) | 260 | 4 | 5950(1692) | 62(19) |
| 5 | 3310(1501) | 66(20) | |||
