6000lbs 12V 24V Electric Winch with Steel Cable, Roller Fairlead Full Mount Kit for ATV UTV Off Road Truck Recovery

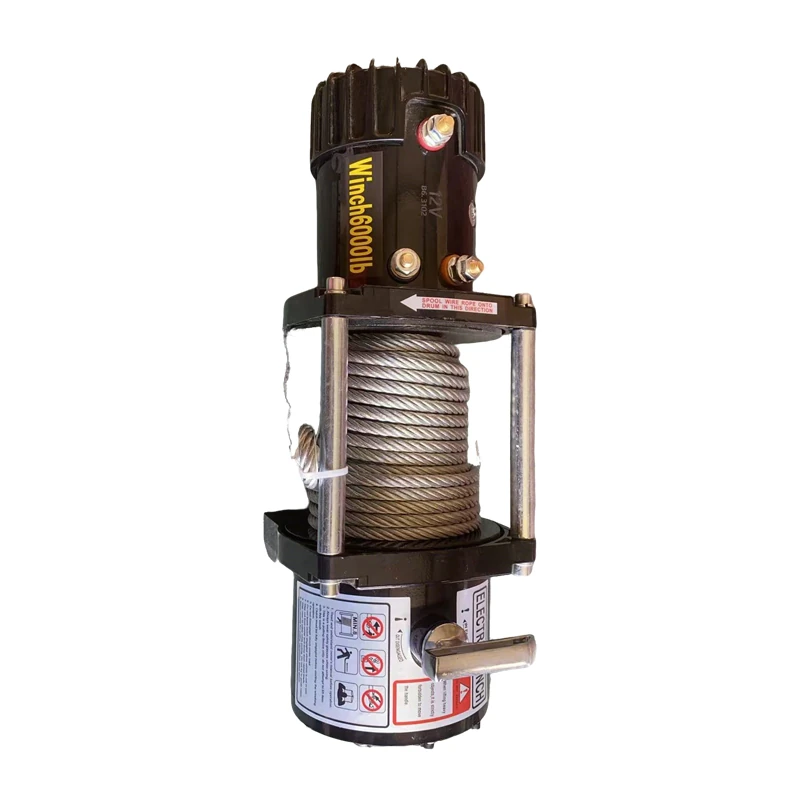

This 6000lbs electric winch with steel cable is a heavy-duty essential recovery tool for off-road enthusiasts, farmers and small truck owners.And electric motors are available in 12V or 24V power. Built with high-torque DC motor and thick galvanized steel cable, it handles heavy vehicle rescue and cargo hauling effortlessly. Equipped with wired handheld remote, roller fairlead and all mounting hardware, it supports easy DIY installation. The automatic safety brake ensures stable load control, and the durable sealed housing adapts to muddy, wet outdoor working conditions for long-term reliable use.
FEATURES
SPECIFICATIONS
| Vertical lifting | 500kg | Gear reduction ratio | 235：1 | Rated Line Pull | 6000lbs(2722kgs) single line |
| Motor | 2.0kw/2.7hp | Wire rope (Dia * L ) | 7mmx14m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 64mmx133.5mm | Overall dimensions (L*W*H) | 415mmx160mmx217mm |
| Weight | N.W.23.0kg G.W.27.0kg | Mounting bolt pattern | 165mmx114mm-11mm | Packing size | 630mmx270mmx330mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 9.8(3.0) | 30 | 1 | 6000(2722) | 15(4.6) |
| 2000（907） | 7.5(2.3) | 120 | 2 | 9530(2263) | 15.1(8) |
| 4000（1814） | 4.9(1.5) | 210 | 3 | 7540(1941) | 43(13) |
| 6000（2722） | 2.9(0.9) | 260 | 4 | 5950(1692) | 62(19) |
| 5 | 3310(1501) | 66(20) | |||
