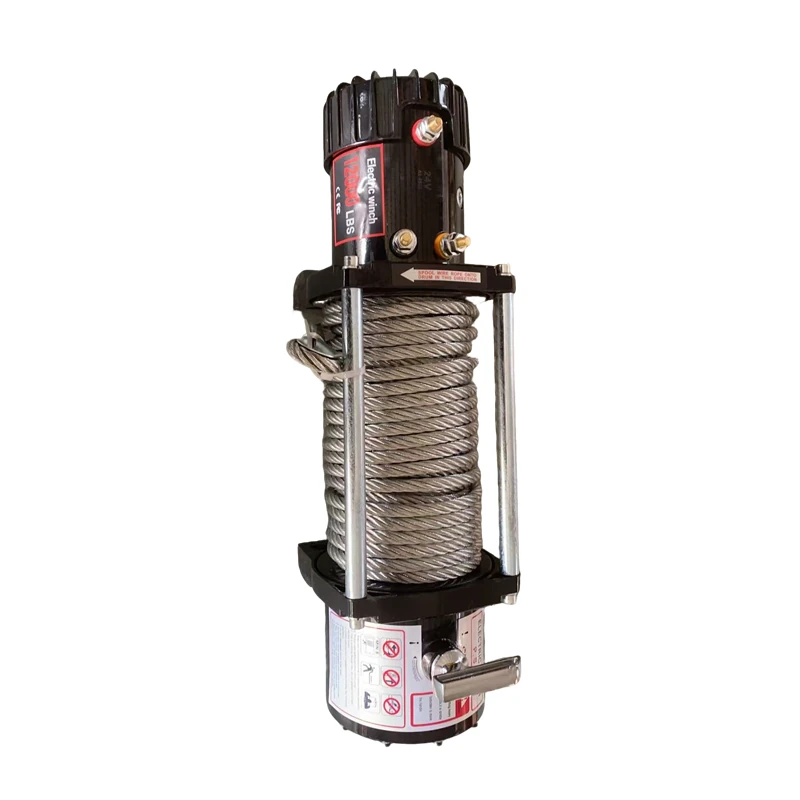

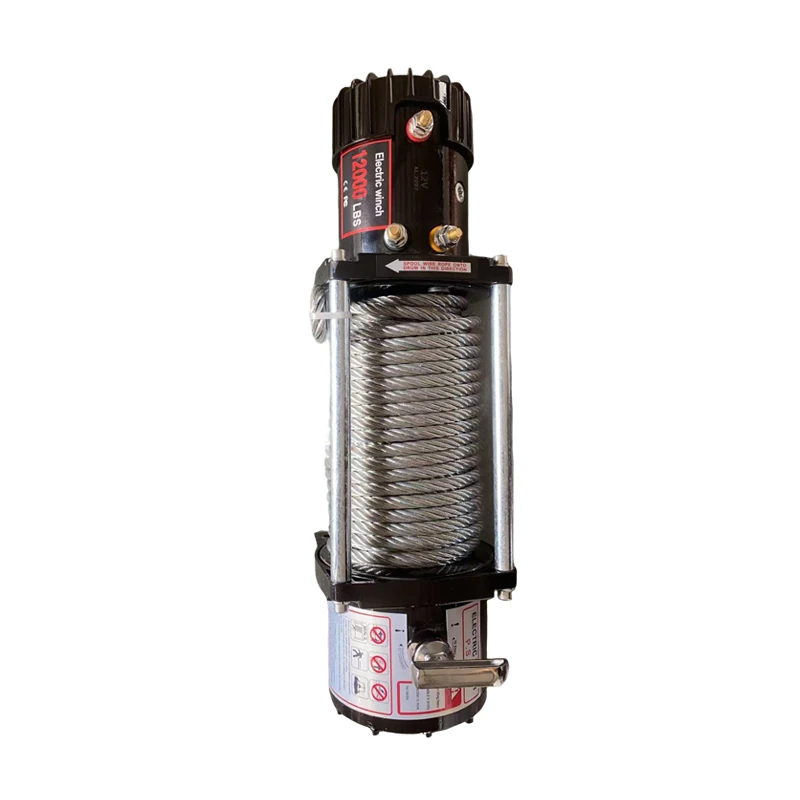

12000lbs 12V 24V Heavy Duty Electric Winch with Pure Copper Motor Galvanized Steel Cable, for Pickup Truck Off Road Vehicle Recovery

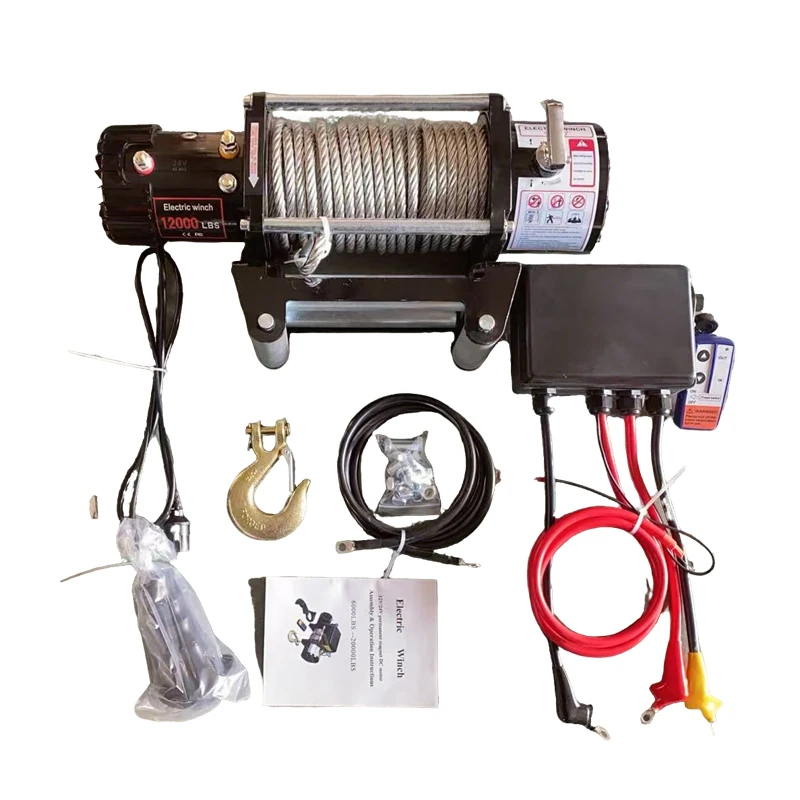

This 12000lbs heavy-duty electric winch with steel cable is a top-tier heavy load recovery tool built for pickup trucks and large off-road vehicles. Its core highlight is the full pure copper winding motor, which provides stable, high-torque power without overheating under continuous heavy tension. Matched with extra thick anti-rust galvanized steel wire rope, it owns outstanding load-bearing and wear resistance compared to ordinary winches. Equipped with dual wired & wireless remote controls, wear-proof roller fairlead and full installation hardware, this waterproof winch supports simple DIY assembly. The reinforced automatic brake ensures maximum safety during heavy towing. It is an essential reliable equipment for off-road rescue, farm heavy hauling and outdoor heavy-load traction.
FEATURES
SPECIFICATIONS
| Vertical lifting | 750kg | Gear reduction ratio | 203：1 | Rated Line Pull | 12000lbs(5443kgs) single line |
| Motor | 3.9kw/5.35hp | Wire rope (Dia * L ) | 9mmx24m | Gear train | Three-stage planetary gear drive |
| Braking action | Autobrake | Drum size (Dia * L ) | 64mmx233.5mm | Overall dimensions (L*W*H) | 527mmx160mmx217mm |
| Weight | N.W.31.0kg G.W.36.0kg | Mounting bolt pattern | 255mmx114mm-11mm | Packing size | 630mmx260mmx380mm 1PC/CTN |
| PULL / SPEED / CURRENT | LINE PULL AND ROPE CAPACITY IN LAYER | ||||
| Line pull lbs(kgs) | Line pull lbs(kgs) | Current A | Layer | lbs(kgs) | ft(m) |
| 0 | 24.9(7.6) | 80 | 1 | 12000(5443) | 13(5) |
| 2000（907） | 16.1(4.9) | 180 | 2 | 9530(4323) | 23(11) |
| 4000（1814） | 10.8(3.3) | 240 | 3 | 7540(3420) | 69(21) |
| 6000（2722） | 8.5(2.6) | 280 | 4 | 5950(2699) | 92(28) |
| 8000（3628） | 7.2(2.2) | 330 | |||
| 10000（4536） | 5.9(1.8) | 380 | |||
| 12000（5443） | 5.2(1.6) | 400 | |||
