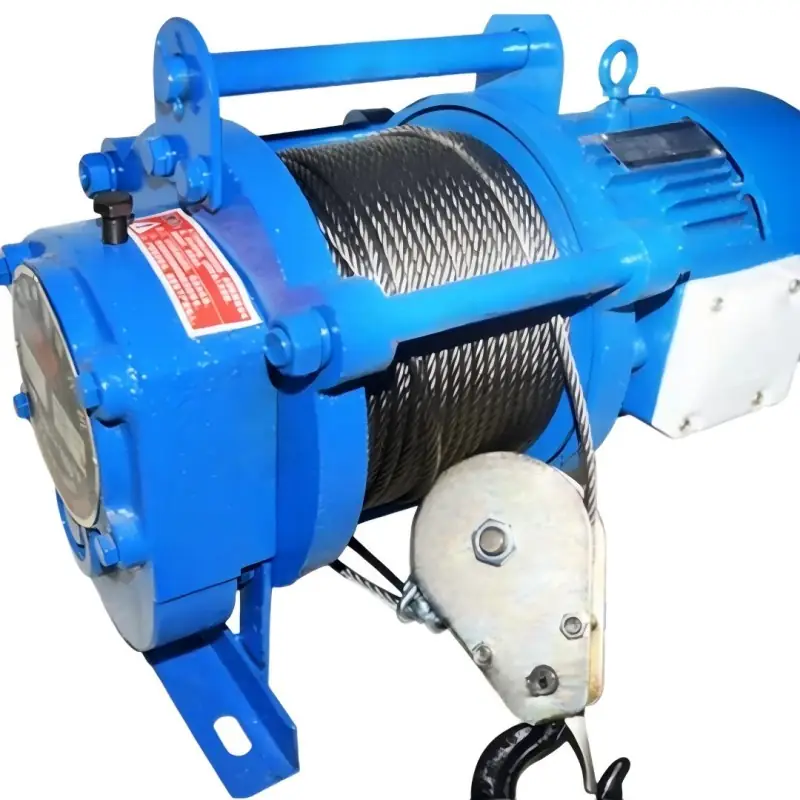

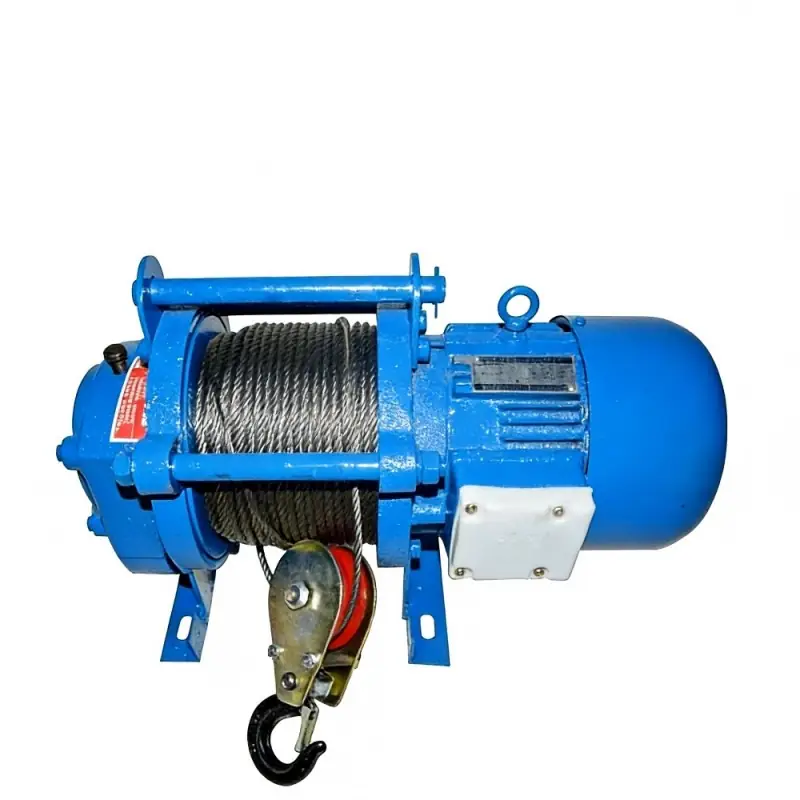

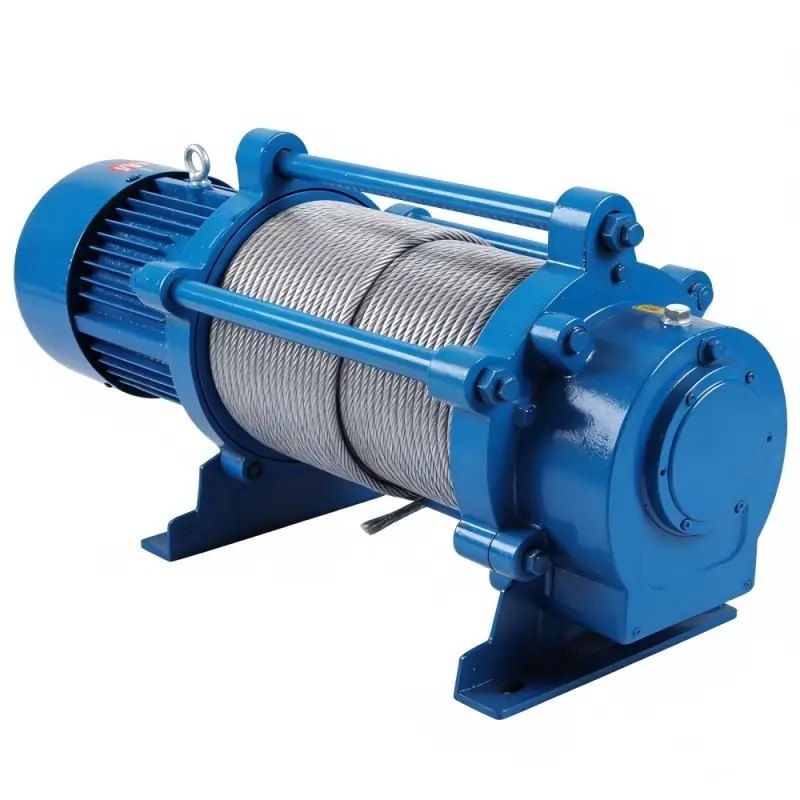

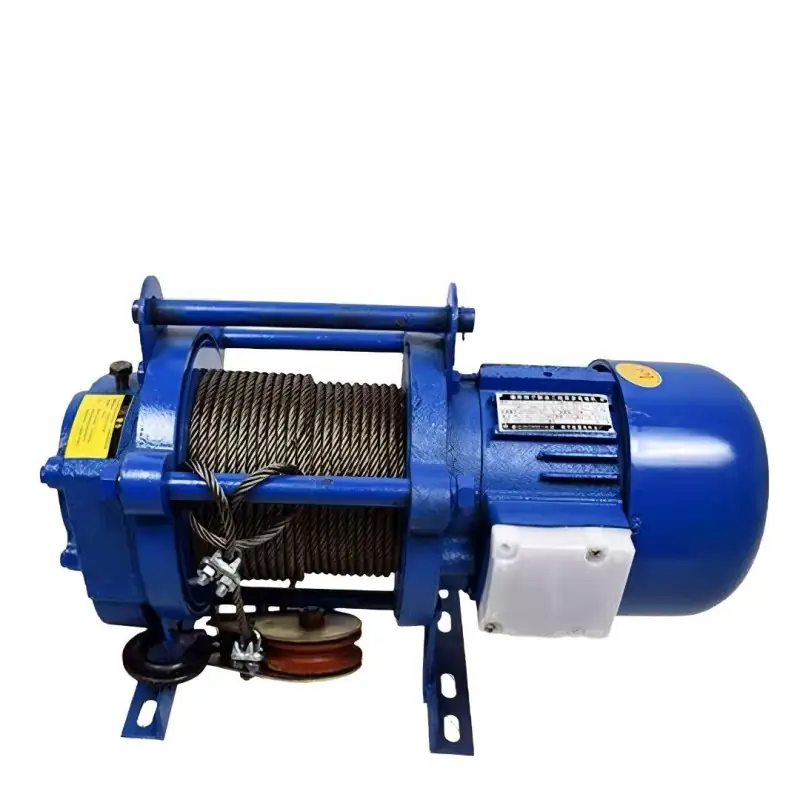

Multiple Function Upgraded Fast Speed Electric Winch KCD Series 1T 1.5T 2T Shipped
KCD electric winches are versatile, high-speed lifting and pulling devices featuring compact design, rapid installation, and 220V/380V power options. Key features include strong, high-tensile wire ropes (up to 100m+), immediate electromagnetic braking, and durable steel construction suitable for construction, mining, and industrial applications.
Key Features and Benefits
Technical Specifications
Common Applications
SPECIFICATIONS
| Model | Usage | Voltage(V) | Lifting Capacity(Kg) | Power(KW) | Lifting Speed(m/min) | Lifting Height(m) | Dia of Rope(mm) | N.W(Kg) |
| 0.8T | Single-Hook | 220/380V | 400 | 2.0KW | 14 | 30-100 | 6 | 32 |
| Double-Hook | 800 | 7 | ||||||
| 1T | Single-Hook | 220/380V | 500 | 2.2KW | 16 | 30-100 | 6 | 34 |
| Double-Hook | 1000 | 8 | ||||||
| 1.2T | Single-Hook | 220/380V | 600 | 3KW | 14 | 30-100 | 6 | 36 |
| Double-Hook | 1200 | 7 | ||||||
| 1.2T | Single-Hook | 220/380V | 600 | 2.2KW | 14 | 30-100 | 6 | 34 |
| Double-Hook | 1200 | 7 | ||||||
| 1.5T | Single-Hook | 220/380V | 600 | 4HP | 14 | 30-100 | 7 | 42 |
| Double-Hook | 1200 | 7 | ||||||
| 1.5T | Single-Hook | 220/380V | 750 | 5HP | 14 | 30-100 | 7 | 42 |
| Double-Hook | 1500 | 7 | ||||||
| 2.5T | Single-Hook | 220/380V | 1250 | 5KW | 8 | 30-100 | 10.0 | 58 |
| Double-Hook | 2500 | 4 | ||||||
| 3T | Single-Hook | 220/380V | 1500 | 5KW | 8 | 30-100 | 10.0 | 58 |
| Double-Hook | 3000 | 4 |
