The HSZ-V Series Chain Block is a professional-grade manual lifting device often described as an upgraded or high-performance version of the standard HSZ models. It is characterized by its V-shaped hook design and enhanced internal bearing system for smoother operation.

Get a Quote

Core Specifications

Capacity Range: Available from 0.25 ton to 50 tons (standard models typically cover 0.5T to 10T).

Standard Lift: Usually 3 meters, but customizable to greater heights upon request.

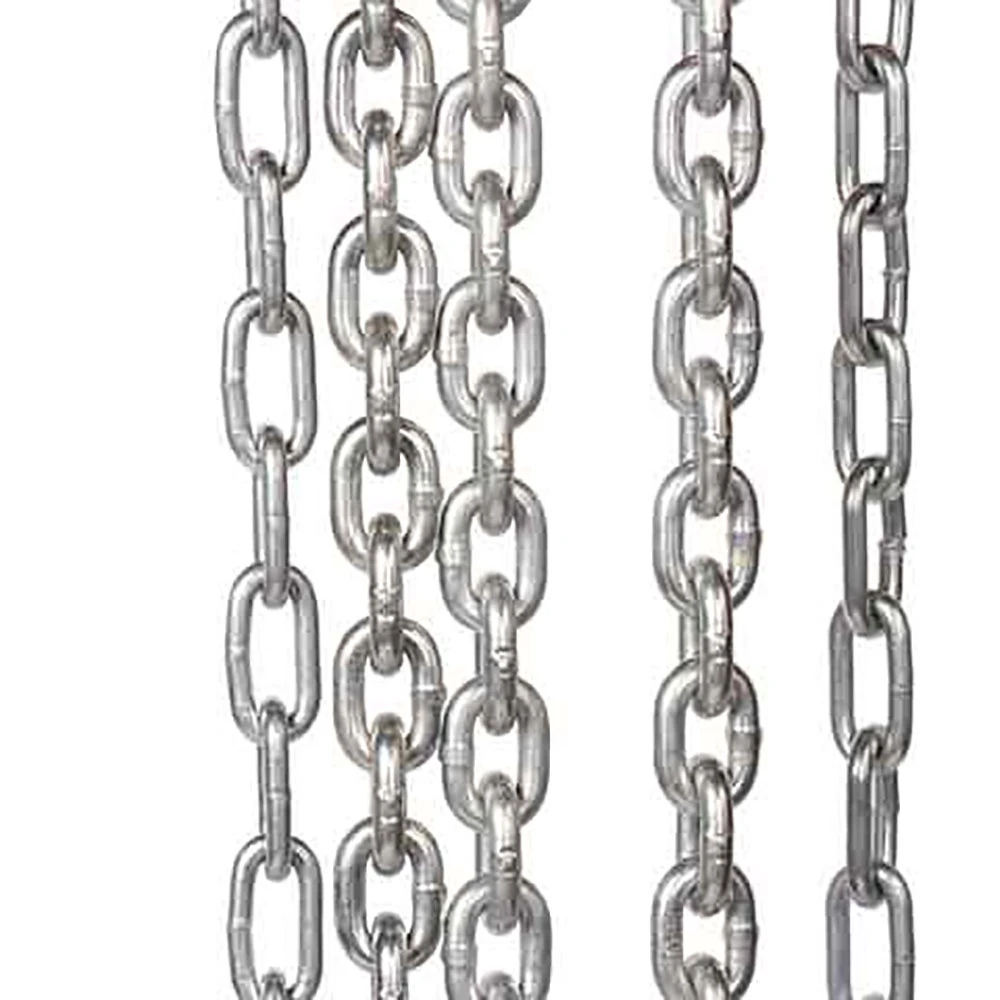

Load Chain: Equipped with high-tensile G80 (Grade 80) alloy steel chains, often black oxide coated or galvanized for durability.

Safety Factor: Generally tested to 1.5 times the rated capacity, with a design safety factor of 4:1.

Key Performance Advantages

Integral Bearing Design: Both the left/right plates and the lifting sprockets use integral bearings, which significantly reduces friction and results in a lighter hand-pull force compared to traditional bushings.

Double-Pawl Braking System: Features a redundant braking mechanism (double pawls) that ensures the load is held securely even if one pawl fails, increasing job site safety.

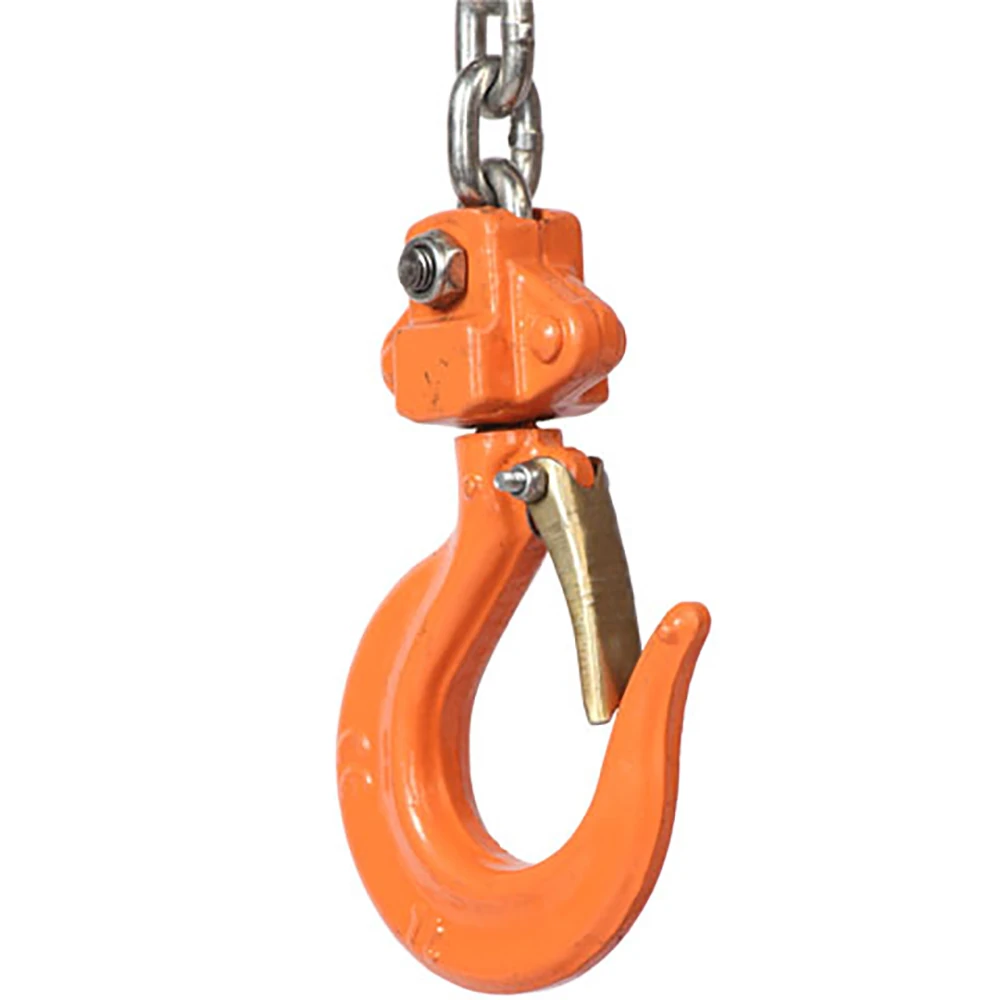

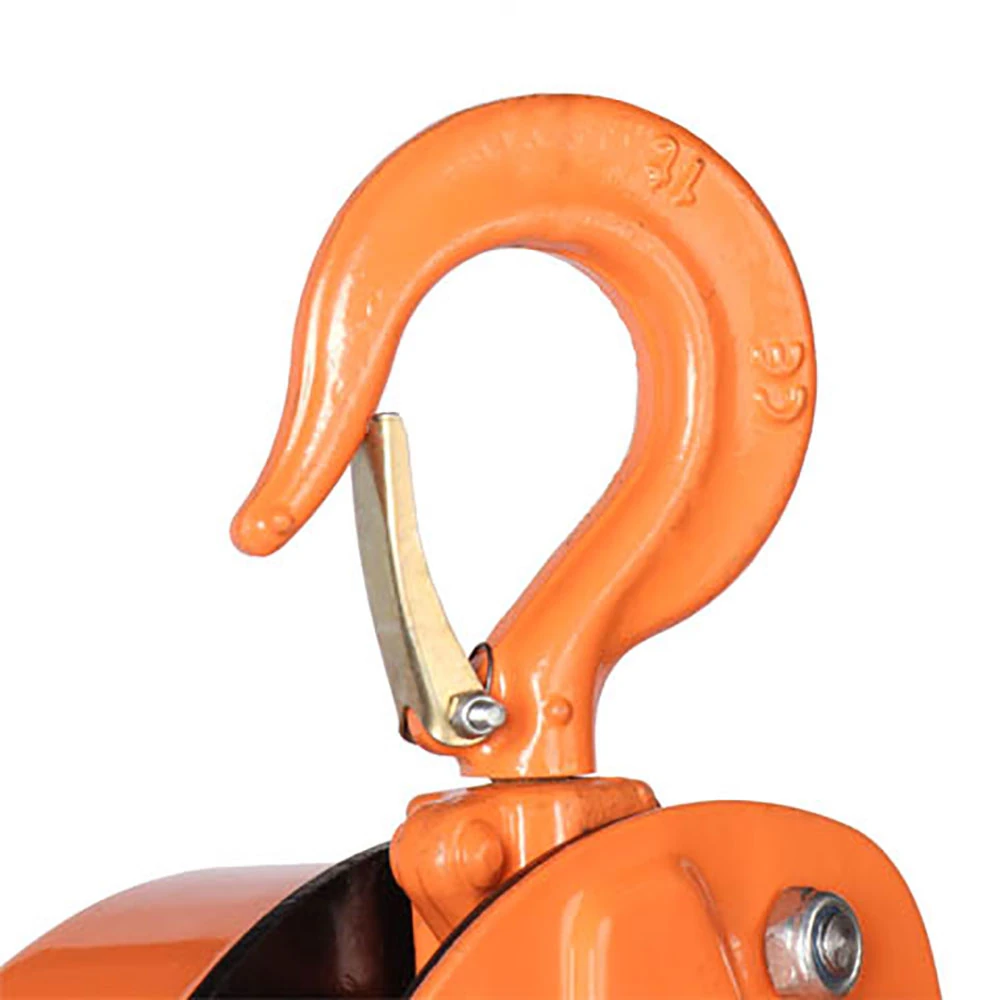

360° Swivel Hooks: Forged alloy steel hooks are designed to rotate 360 degrees for easy rigging and are engineered to stretch slowly under extreme overload as a visual warning.

Guide Wheel System: Equipped with two integral guide wheels to ensure the load chain feeds smoothly and stays aligned with the sprocket.

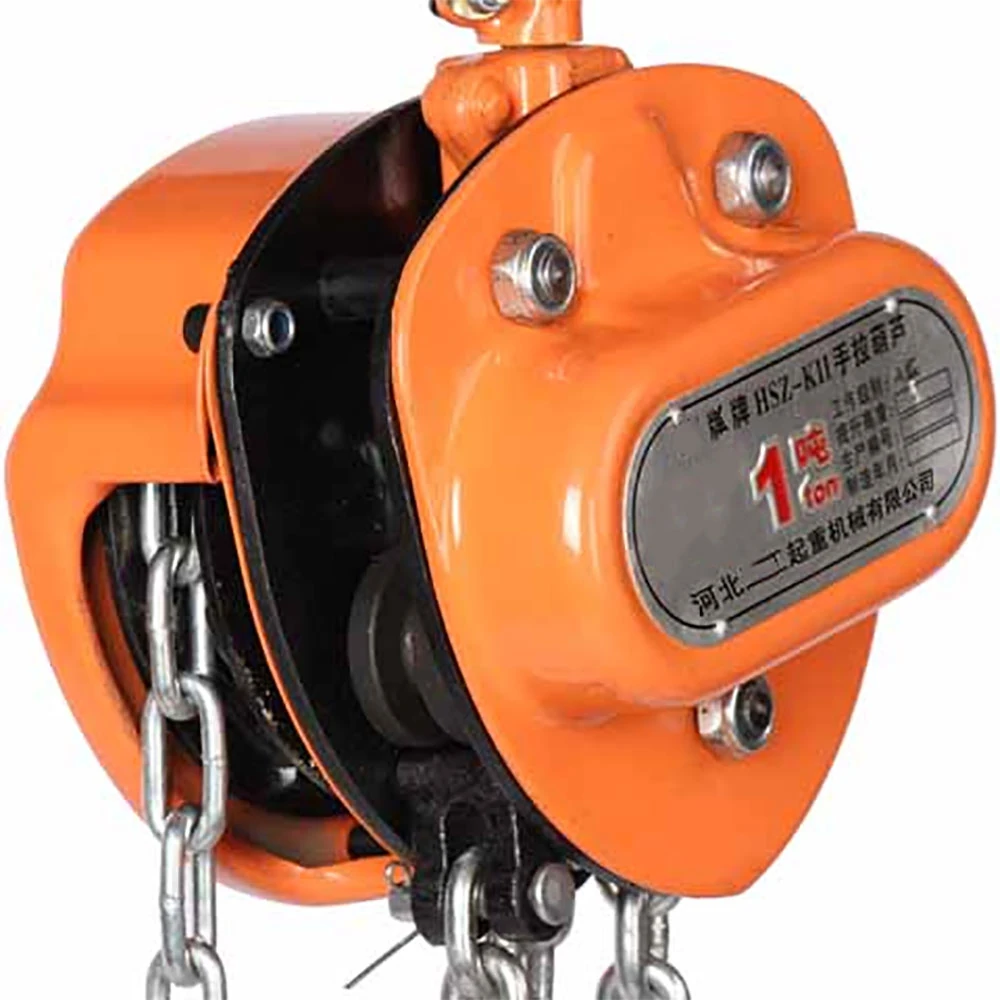

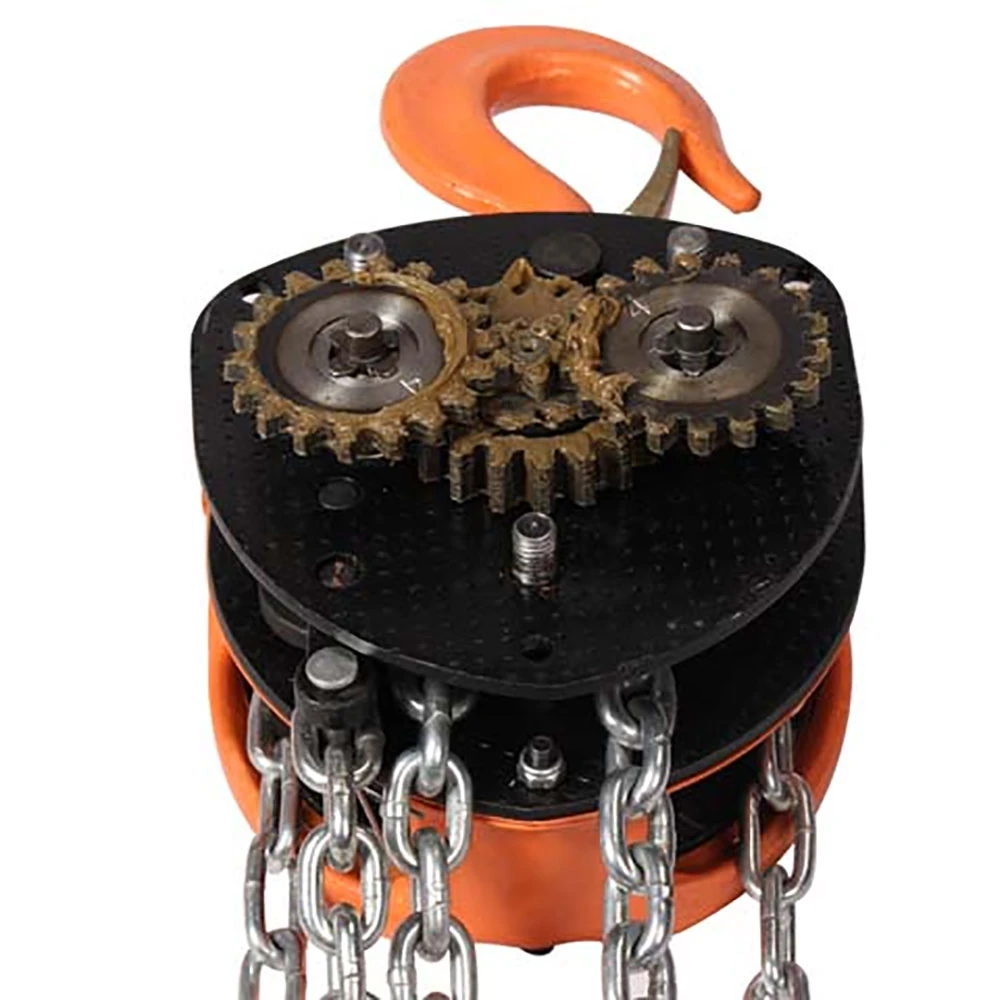

Impact-Resistant Cover: The thickened alloy steel housing protects internal gears from external shocks and debris.

SPECIFICATIONS

SPECIFICATIONS
Model	Rated Load (kg)	Lifting Height (m)	Force of Full Load(N)	Test Load(kg)	Dimension of Load chain	Net.Weight (kg)
V-1	1000	3	1.50	31	6*18	10
V-2	2000	3	2.50	34	6*18	14
V-3	3000	3	4.50	35	8*24	24
V-5	5000	3	7.50	39	10*30	36
V-10	10000	3	12.50	41	10*30	68
V-20	20000	3	25.00	41×2	10*30	150
V-30	30000	3	77.50	47×2	10*30	240
