Electric Pallet Truck Conversion Kits for BF Pump

Electric Pallet Truck Conversion Kits for BF Pump

Category:

2000KG capacity 4400lbs Electric Conversion Kit for Manual Pallet Jacks (also known as a Power Handle Retrofit Kit).

Get a Quote

Core Features and Functions

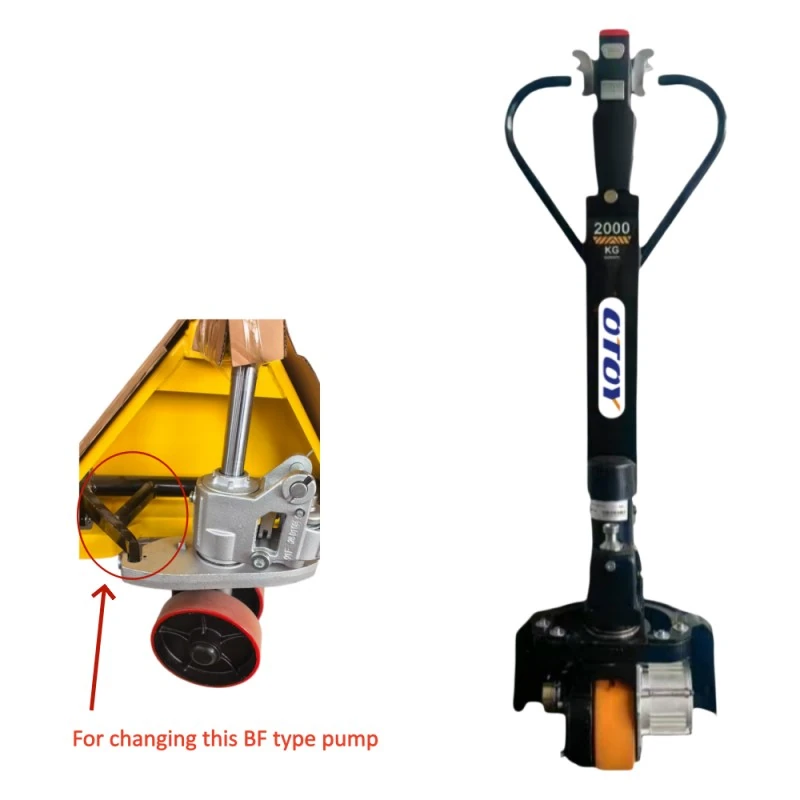

Manual-to-Electric Upgrade: It allows businesses to upgrade existing manual hydraulic pallet jacks into fully electric motorized jacks by simply replacing the original steering handle, eliminating the need to discard functional manual equipment.

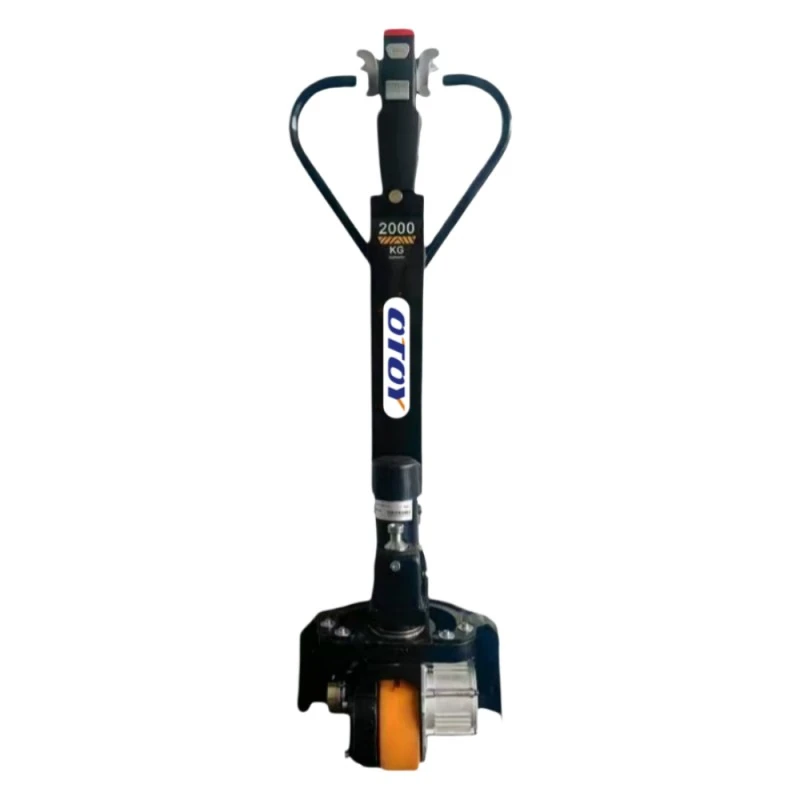

Heavy-Duty Capacity: The assembly prominently displays a 2000 KGS CAPACITY label, indicating a robust motorized pushing/pulling capability of up to 2 metric tons (4,400 lbs).

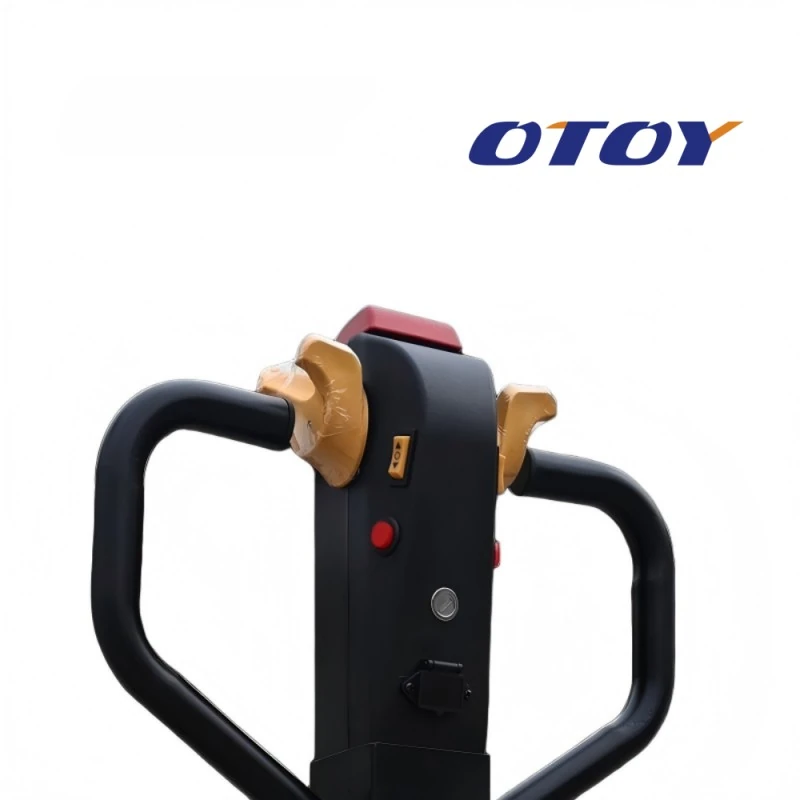

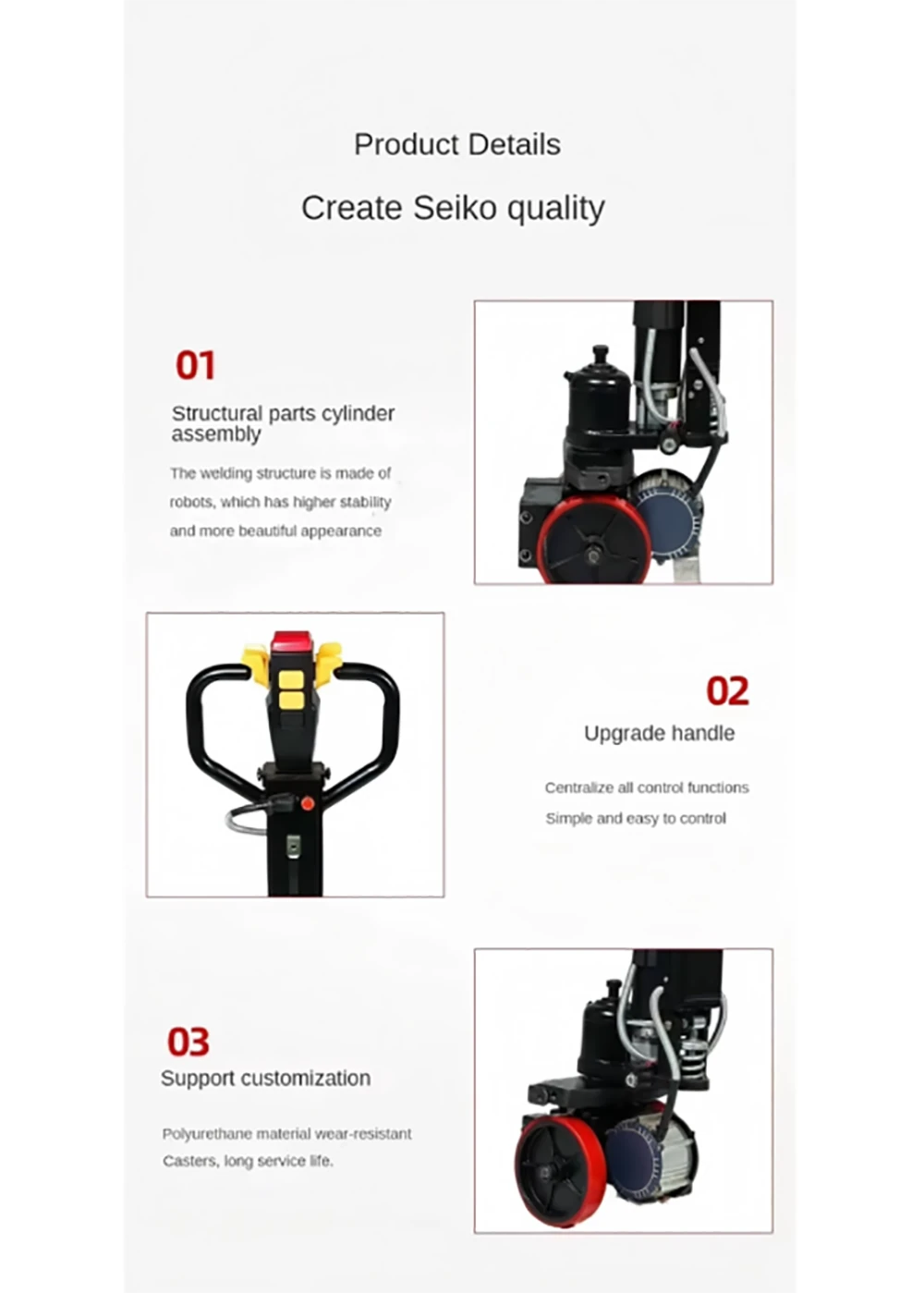

Highly Integrated Assembly: It combines the multi-function control handle, a high-capacity lithium battery, a driving motor, a traction wheel, an electronic controller, and the core wiring harness into a single, compact unit.

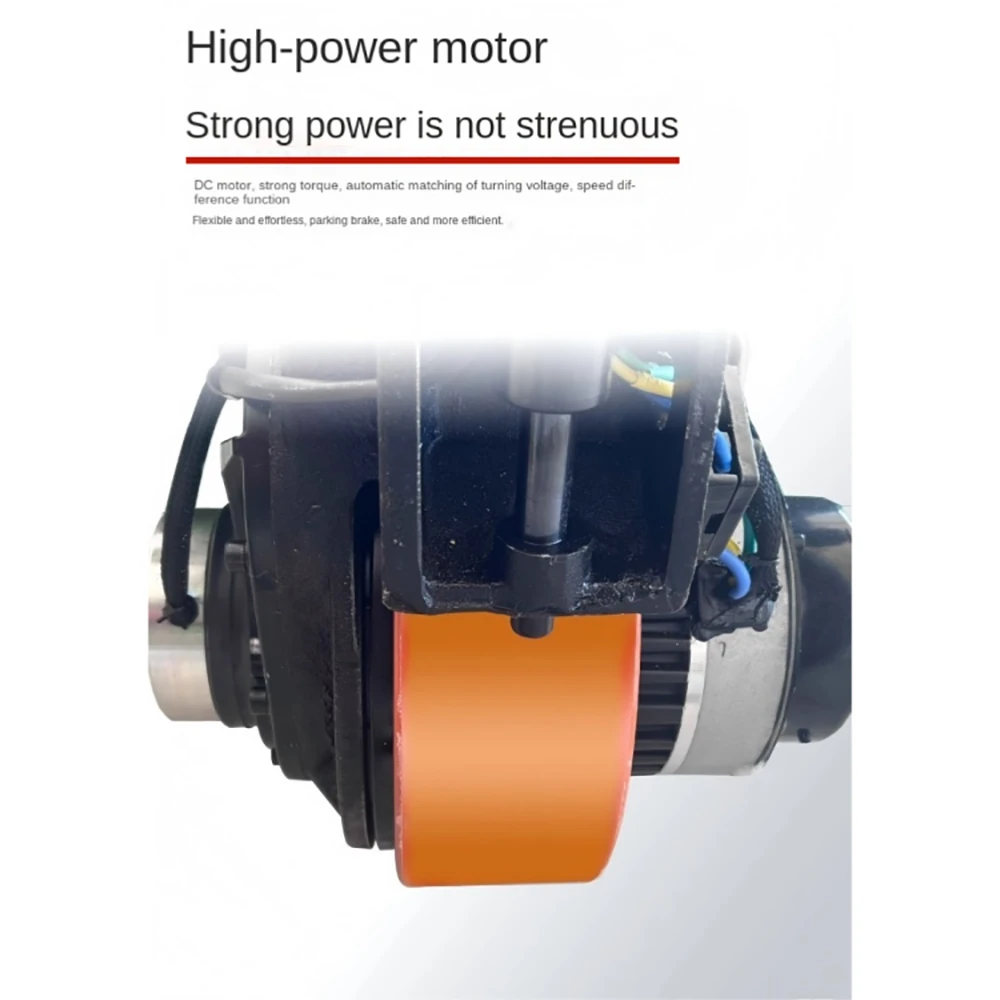

Premium Hardware: The base features a heavy-duty, wear-resistant polyurethane (PU) drive wheel driven by a high-torque brushless motor, providing smooth acceleration and excellent climbing gradeability.

Cost-Efficient Solution: It offers a highly economical alternative to purchasing brand-new electric pallet jacks, drastically lowering hardware upgrade costs for warehouses and logistics centers.

SPECIFICATIONS

Model	GD 02
Rated load (kg)	2000
Gradeability	6°
Cylinder Lifting Height	110-115MM
Applicable Model	AF/BF
Continuous Working Time	3-4 Hours
Drive Motor Power	1000W
Oil Pump Motor Power	850W
Battery Capacity	Lithium Battery 48V12Ah
Hydraulic System Voltage	48V
Travel Speed	4.0KM/H (Full Load) / 4.5KM/H (No Load)
Lifting Speed	6s (Full Load) / 9s (No Load)
Lowering Speed	3s (Full Load) / 4s (No Load)
Self-weight	Approx. 45.6KG
Control Type	Mechanical Steering, Electric Travel, Electric Lifting
