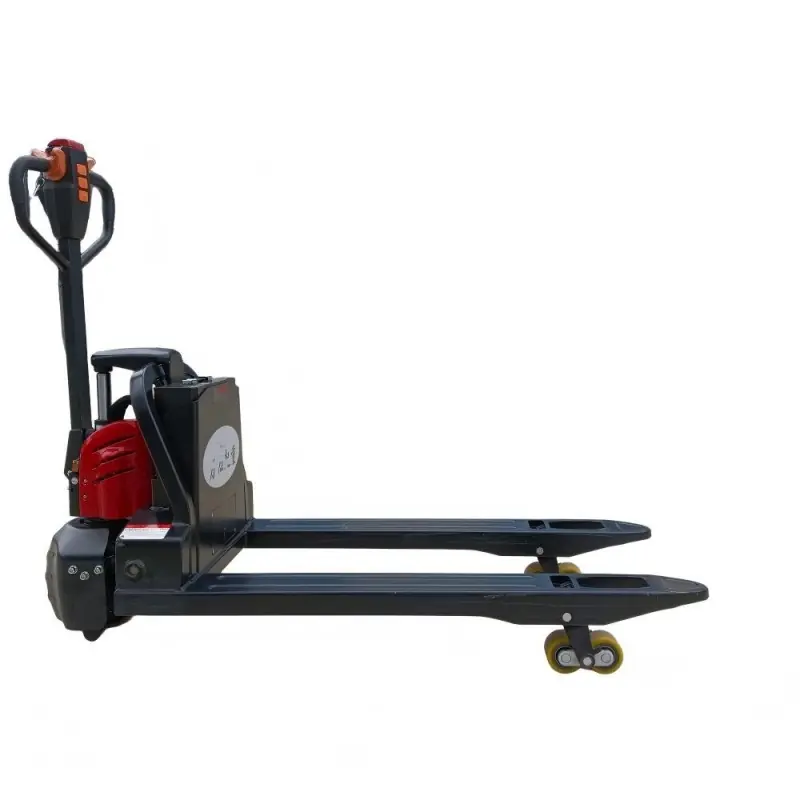

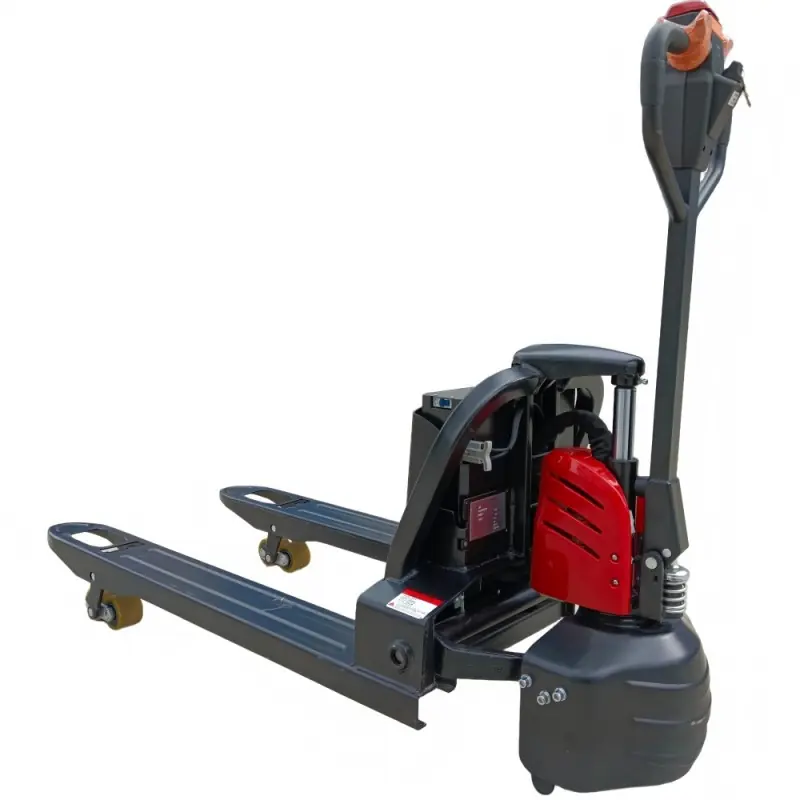

Lithium-ion 1500kg 2000kg powered electric pallet truck – Medium duty – Tight turning

Lithium-ion 1500kg 2000kg powered electric pallet truck – Medium duty – Tight turning

Category:

Lithium – Electric Pallet Truck
Loading capacity 1500kg and 2000kg, lithium electric pallet truck eliminates operator fatigue, struggling, backaches and injuries. Greatly increase your work productivity with this economical, quiet, very low maintenance, ultra-smooth, fully electric pallet jack. It is the ideal choice for delivery and retail operations.

Ergonomic and robust, this electric pallet truck has a maintenance-free lithium battery with one-hand removal and a tight turning radius. Perfect for applications within confined spaces like elevators, trailers, containers, and mezzanines warehouses.

Get a Quote

FEATURES

Smart Lithium Battery

Equipped with a maintenance-free Lithium battery with optional different capacities for various applications, fast charging and opportunity charging, allowing you to charge between operations and during breaks.

The Easiest Battery Exchange

The smart design allows easy exchange of the 24 volt battery pack within seconds.

Easy-Maintenance

Convenient and fast access to any component of the truck. No Special tools are required. There are no hoses or pipes used in the hydraulic lifting circuit which significantly improves reliability and reduces the amount of potential problems related to leakages through connectors or their seals.

Robust and Reliable Design

The frame of the truck is surrounded by stamped steel and a strong steel apron ensuring the protection of components. The unique fork design allows for easy entrance and exit from pallets and their full length double sided C-shape reinforcement significantly increases the strength and rigidity of the frame.

Excellent Climbing Performance

Ability to overcome ramps up to 4%/16% incline (laden/unladen).

Ergonomic Smart Tiller

Ergonomic design has soft grips for comfortable daily operation. All buttons are big and can be easily reached by operators even while wearing gloves.

Integrated PIN code panel with LCD display for smart control
and operation. Includes Battery discharge indicator, operating hour counter, and on-board diagnostics via error codes.

Turtle Speed Button – Pinwheel Capability

By holding the Turtle button down, the truck will operate with the handle in the upright position, providing safe and easy operation within confined spaces such as steering within a trailer, a container or other small areas.

Dual Butterfly-Style Thumb Controls for traveling

Emergency reverse, horn and electric lifting and lowering buttons.

SPECIFICATIONS

Driving mode	(Electric)
Operating mode	(Pedestrian)
Rated load capacity(kg)	1500			2000
Load center(mm)	600
Front hanging distance(mm)	944
Wheelbase(mm)	1243
Self-weight(excluding batteries)(kg)	142			146
Wheels/Tyres
Type of tire	Polyurethane(PU)
Drive wheel size(mm)	φ210×70
Bearing wheel size (mm)	φ80×60
Number of wheels,front/rear wheels (x=drive wheels)	1x/4
Wheelbase,bearing end(mm)	400/535
Dimensions
Lifting height(mm)	200
Operating position handle rod minimum/maximum height(mm)	740/1160
Minimum height of fork(mm)	85
Vehicle length(mm)	1603
Body length(mm)	453
Width of the whole car(mm)	550/685
Fork size(mm)	50/150/1150
Fork outer width(mm)	550/685
Ground clearance at the center of the wheelbase(mm)	35
Channel width:1000x1200 pallets(1200 cross fork placement)(mm)	1804
Channel width:800x1200 pallets(1200 placed along the fork)(mm)	1854
Turning radius(mm)	1398
Performance
Performance	Performance
Performance	Performance
Performance	Performance
Performance
Drive motor power(kw)	0.75
Risting motor power(kw)	0.5			0.8
Battery voltage/passengage(V/Ah)	24/20	24/30	24/40	24/60	48/20	48/30
Battery weight(±5%)(kg)	6	8.2	10.2	13.2	10.2	13.2
Other
Drive control type	DC speed control(DC)
Noise level(A)	≤70
Steering type	(Mechanical)

Specifications will be added here.
